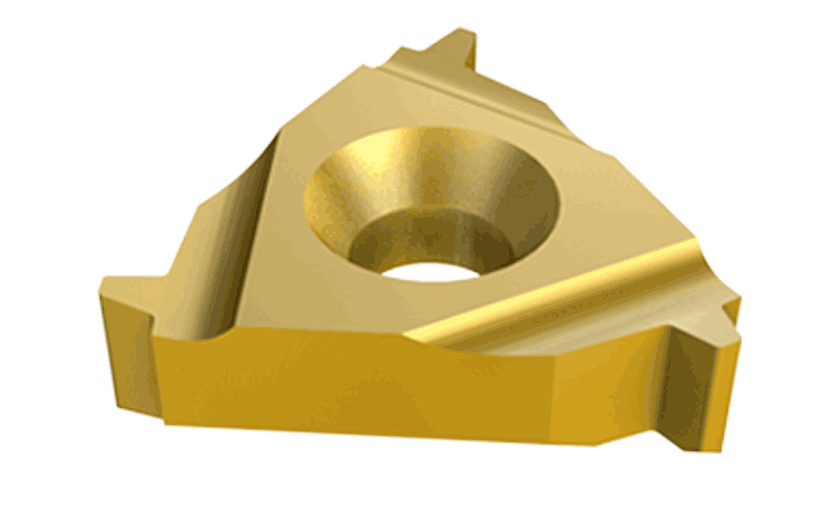

 Threading      Family: ER/L-TR External Trapeze Shaped DIN 103 Laydown Threading Inserts, for Feed Screws       Designation: 22EL 4 TR
 External right-hand shown

External thread milling   External threading

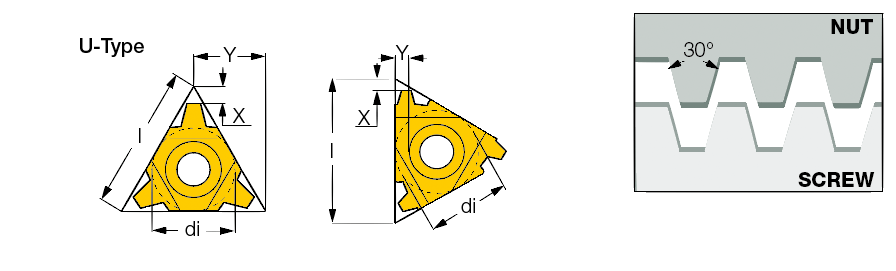

di Pitch mm l X Y
  .500   4.00   .866   .07   .07

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5901986 IC908   Not Available
3D Required

  5993765 IC50M Alternative Not Available
3D Required

  5994702 IC250 Alternative Not Available
3D Required


For Insert Identification System, click on "More Info".
DIN 103 04/1977,1502901/1977 Class 7H.
