 Threading      Family: ER/L-W External Whitworth (BSW, BSF, BSP), B.S.84-1956 DIN 259 Medium Class, Full Profile Laydown Threading Inserts       Designation: 22ER 5 W
 External right-hand shown

External thread milling   External threading

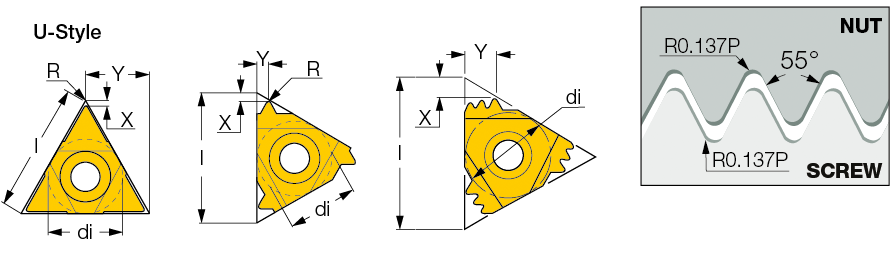

di TPI l R X Y Z
  .500   5.0   .866   .026   .07   .09   1

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5900046 IC50M Alternative Not Available
3D Required

  5992845 IC250 Alternative Not Available
3D Required


For Insert Identification System, click on "More Info".
For threading between walls use GRIP-type insert TIP-BSW.
Tolerance: Medium Class.
