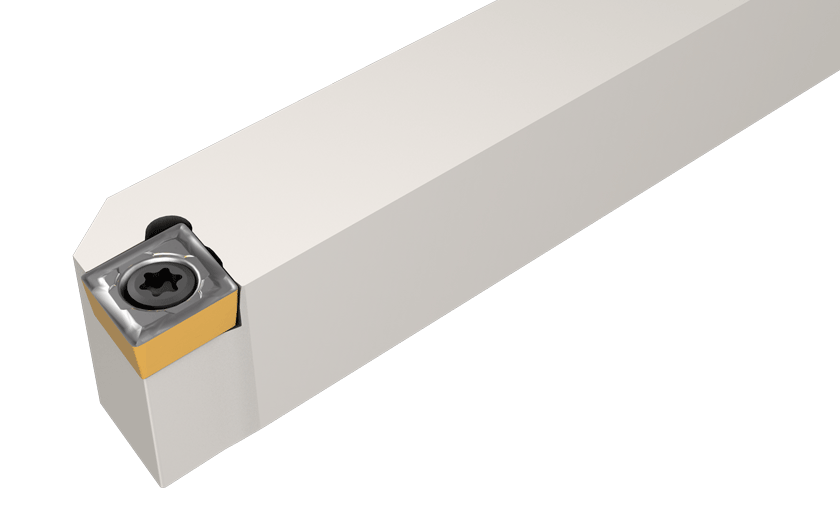

 ISO-Turning      Family: SCACR/L Screw Lock Holders for 7° Clearance 80° Diamond Inserts for Swiss Type Machines       Designation: SCACR 1010K-06S
 Right-hand shown

Ext. 80° diamond 93° approach

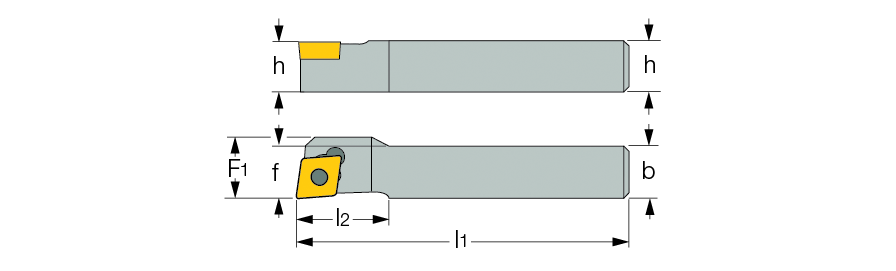

h b l1 l2 f F1 Ga° Gr°
  10.0   10.0   150.00   -   10.0   -   0   0

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3601811 Not Available
3D Required


7000217  7000217  SR 14-548  Details

7000271  7000271  T-7/5
