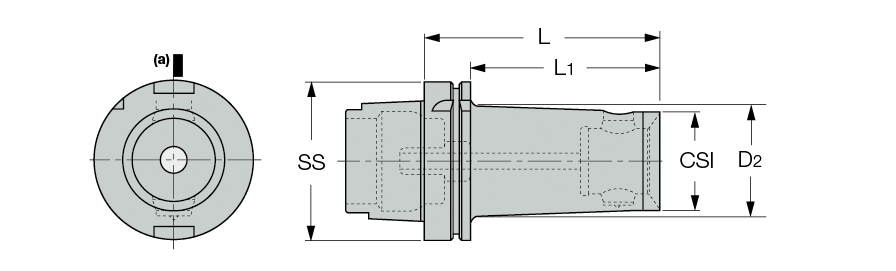

 (a)Cutting edge position |
 |
|
|
|
|
|
|
| 63 |
MB40 |
94.0 |
120.00 |
46.00 |
1.60 |
 |
4561256 |
COOLING TUBE HSK A 63
(Optional, should be ordered separately) |
|
|
|
| |
 |
4561258 |
WRENCH COOL TUBE HSK 63
(Optional, should be ordered separately) |
|
|
|
| |
|
|
|
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
