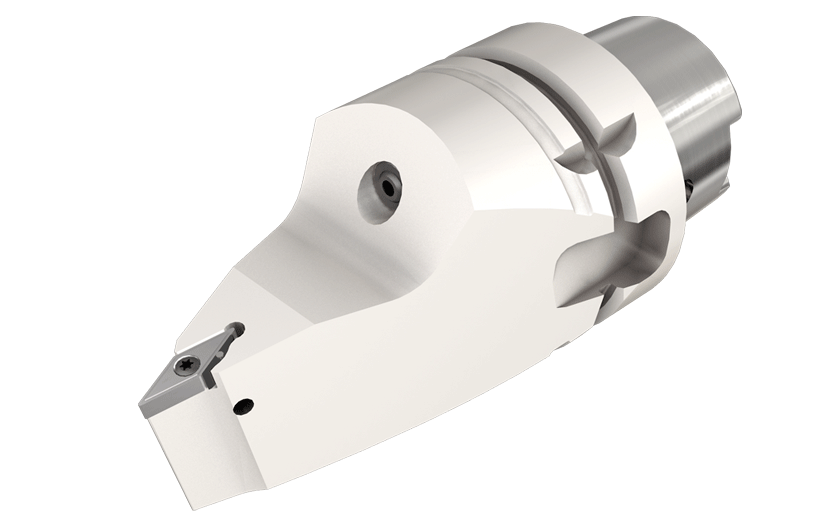

 Tooling Systems      Family: HSK A63WH-SVVNN-F 72.5° Lead Angle Toolholders for 35° Negative Inserts with HSK Exchangeable, Tapered Shanks       Designation: HSK A63WH-SVVNN-J12F
 Complies with the ICTM and HSK-T standards.

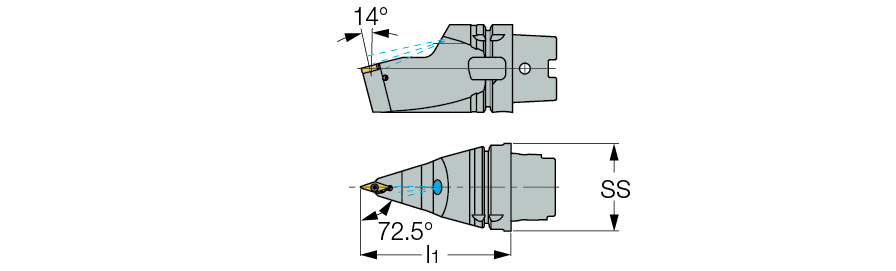

Ext. 35° diamond 72.5° approac   HSK   COOLANT
SS l1
  63   110.00

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3602393 Not Available
3D Required


7000854  7000854  SR 14-551  Details

7000853  7000853  T-9/5

7002367  7002367  AV 12

7002425  7002425  PA 12

7000898  7000898  EZ 104


A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
