 Tooling Systems      Family: T290 FLN-15 90° Face Mills with T290 LNMT 1506... Tangentially Clamped Inserts       Designation: T290 FLN D050-05-22-15


Facing   Shouldering   Slotting   COOLANT

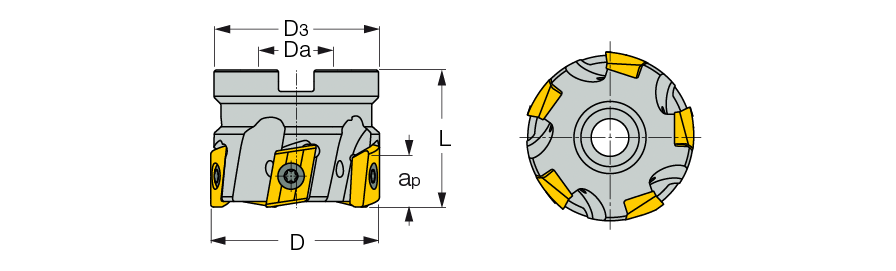

D Z ap L Da ArborFor adaptation click on More Info Kg
  50.00   5   14.00   40.00   22.00   A   0.33

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3105346


7005206  7005206  SR 10505427  Details

7002553  7002553  BLD IP20/S7

7002097  7002097  SW6-T

7000240  7000240  SR M10X25DIN7984  Details
