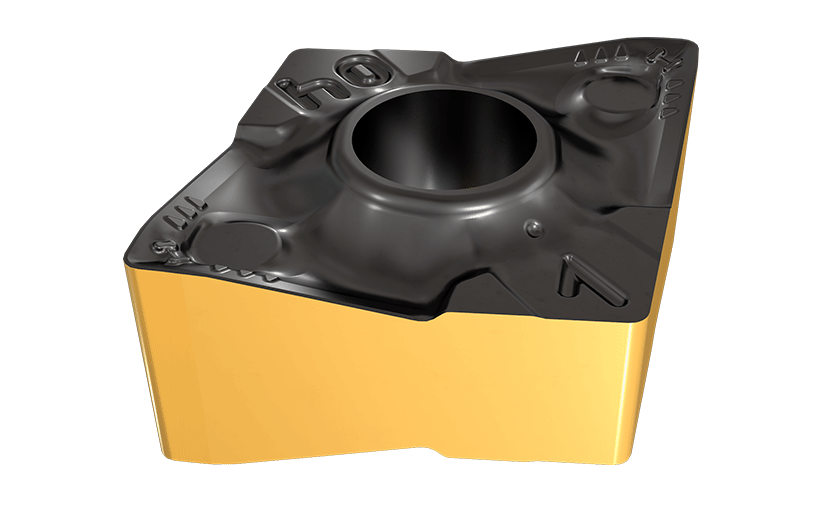

 ISO-Turning      Family: CNMX-HTW Double-Sided 80° Rhombic Inserts with High Helical Cutting Edge for High Metal Removal Rates       Designation: CNMX 120708-HTW

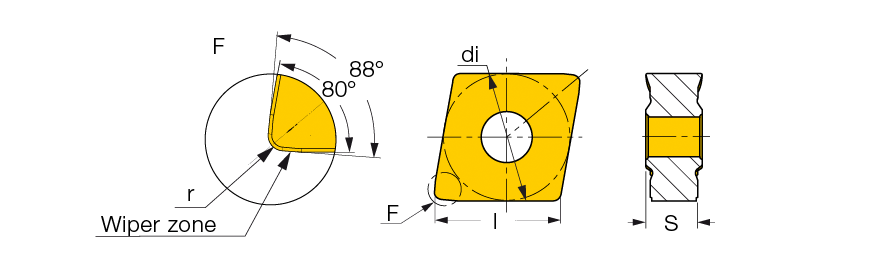

Ext. 80° diamond 95° approach   Int. 80° diamond 95° approach
l di S r ft(min) ft(max) ap(min) ap(max)
  12.90   12.70   6.75   0.80   0.25   0.60   1.50   6.00

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5507026 IC907 Alternative

  5507338 IC9150 Alternative

  5507339 IC9250 Alternative

  5507340 IC9350 Alternative

  5507914 IC8250 Alternative

  5507915 IC8150 Alternative

  5507916 IC8350 Alternative

  5507985 IC807 Alternative


For dimensions and tolerances, see more info. PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert.
