 Milling      Family: APKT 1003PDTR-8M Insert with Reinforced Helical Cutting Edge, for Interrupted Cut and Heavy Milling       Designation: APKT 1003PDTR-8M


Countersinking   Drill mill   Facing   Plunging & recessing   Ramp down   Shouldering   Slanted shoulder. & chamfer.   Slotting

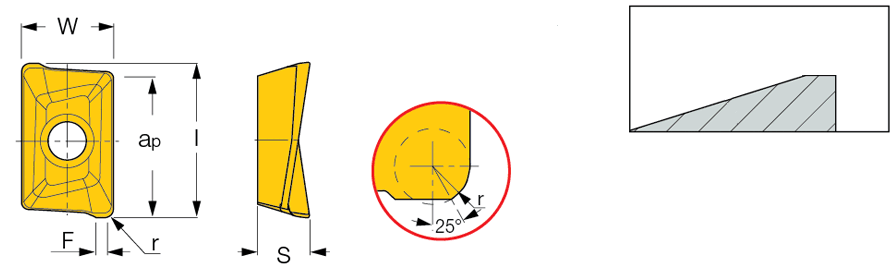

W l S r F ap fz(min) fz(max)
  6.70   10.95   3.55   0.50   1.20   10.05   0.08   0.20

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5600510 IC50M Alternative Not Available
3D Required

  5600614 IC520M Alternative Not Available
3D Required

  5600616 IC635 Alternative Not Available
3D Required

  5600617 IC250 Alternative Not Available
3D Required

  5696925 IC328 Alternative Not Available
3D Required
