 Milling      Family: ECC-E-3 3 Flute, 38° Helix Medium Length Slot / Drill Solid Carbide Endmills with Chamfered Corners       Designation: ECC100E22-3W10


Shouldering   Slotting   Ramp down   Helical interpolation   Counter boring

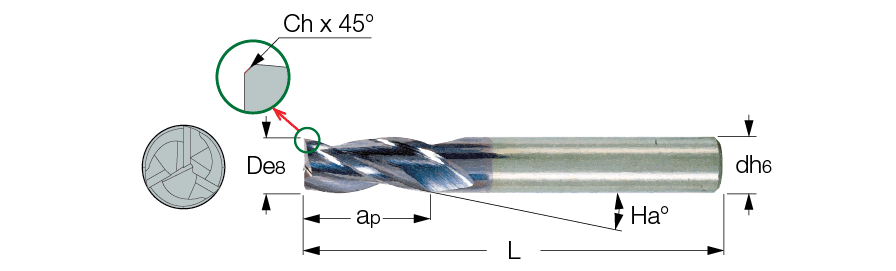

D d ap L Flute Ha° Rd° ShankC-Cylindrical, W-Weldon Ch fz(min) fz(max)
  10.00   10.00   22.00   72.00   3   38.0   5.0   W   0.25   0.03   0.10

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5620473 IC900 Alternative Not Available
3D Required

Multi-purpose endmill
Suitable for deep slotting
