 Turn-Groove      Family: HGPL Utility Double-Ended Face Machining Insert       Designation: HGPL 3002Y


Face Grooving   Face Grooving & Turning   Face Grving Along Shaft   Int. Face Grooving   Int. Face Recessing

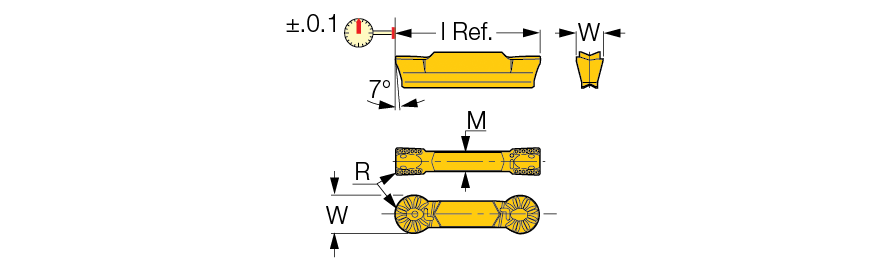

W±0.03 M R±0.05 l ap(min) ap(max) fft(min) fft(max) ffg(min) ffg(max)
  3.00   2.3   0.20   16.00   0.24   1.80   0.12   0.23   0.08   0.20

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  6200226 IC354 Alternative

  6200227 IC08 Alternative

  6200228 IC908 Alternative

  6200404 IC808 Alternative Not Available
2D Required


No depth penetration limit
