 Milling      Family: E45KT 45° Endmills, Carrying Octagonal or Round Inserts       Designation: E45KT D40-C32-R06


Facing   Profiling   Ramp down   Slanted shoulder. & chamfer.

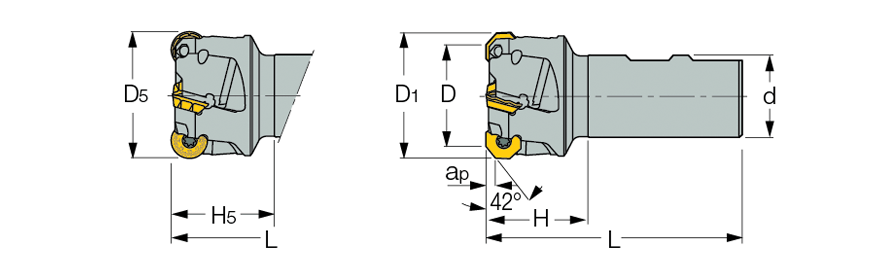

D D1 D5Dimensions with REMT 15 round inserts. Z H H5Dimensions with REMT 15 round inserts. L d ap Rd° Rd°5Dimensions with REMT 15 round inserts. ShankC-Cylindrical, W-Weldon Kg
  40.00   49.0   50.70   4   32.00   32.50   132.00   32.00   2.50   6.0   7.6   C   0.80

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3101126 Not Available
3D Required


7000402  7000402  SR 14-544/S  Details

7000263  7000263  T-15/51


For adaptation click on "More Info"
For insert OE..-06, ap=2.5 mm. For insert RE..-15, ap=7.9 mm
