 Milling      Family: HM90 E90AD-CF-15 90° Endmills with a CLICKFIT Adaptation for HM90 ADKT-1505... Inserts       Designation: HM90 E90AD-D1.50-4-CF4


Shouldering   Slotting   Counter boring   Ramp down   Helical interpolation   Facing   COOLANT

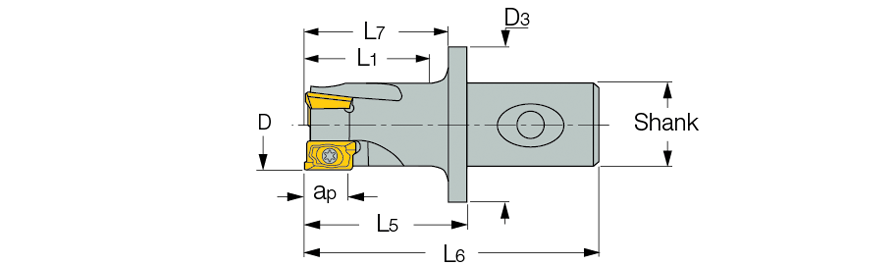

D Z ap L1 L7 L5 L6 D3 Rd° Shank Lbs
  1.500   4   .560   1.74   1.970   2.210   3.940   1.732   4.0   CF4   1.193

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3101736 Not Available
3D Required


7000402  7000402  SR 14-544/S  Details

7002244  7002244  SW6-SD

7002095  7002095  BLD T15/M7


For adaptation click on "More Info".
Thinner insert ADM. 1503..mounted on TSP-15R seat.
