 Milling      Family: HM90 F90A-15 90° Face Mills with HM90 ADKT 1505... Inserts       Designation: HM90 F90A D200-9-60


Facing   Shouldering   Slotting   Ramp down   Counter boring

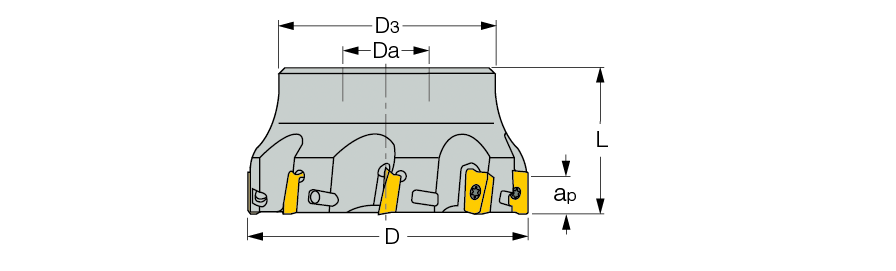

D Z ap L Da Rd° ArborFor adaptation click on More Info Kg
  200.00   9   14.30   63.00   60.00   0.3   C   7.55

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3102097 Not Available
3D Required


7000216  7000216  SR 14-544  Details

7002095  7002095  BLD T15/M7

7003805  7003805  SW6-T-SH
