 ISO-Turning      Family: A/E-SWUCR Boring Bars for Small Diameters Using WCGT Trigon Inserts       Designation: E10M SWUCR-02

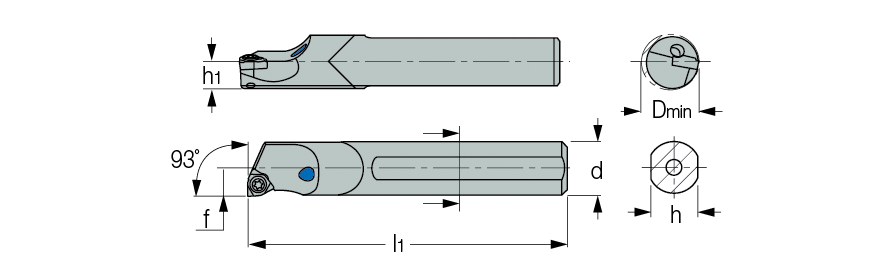

 Right-hand shown

Int. 80° trigon 93° approach   COOLANT
d l1 h h1 f Ga° Gr° D min Shank m.S-Steel, C-Carbide
  10.00   150.00   9.0   4.5   5.2   0   -12   10.90   C

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3601989 Not Available
3D Required


7000428  7000428  T-6/5

7002031  7002031  SR 14-299  Details
