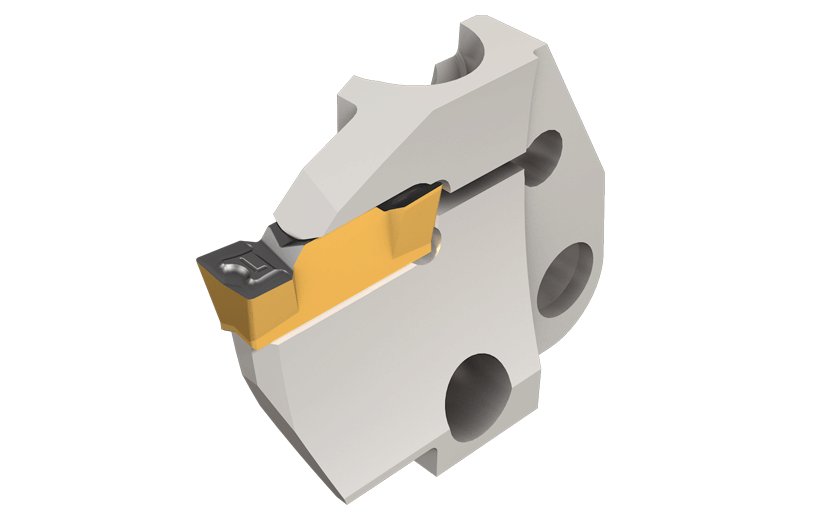

 Turn-Groove      Family: HFPAD-6 Adapters for Face Machining       Designation: HFPAD 6L-100-T20
 Left-hand shown
 Left-hand shown
Face Grooving   Face Grooving & Turning   Face Grving Along Shaft

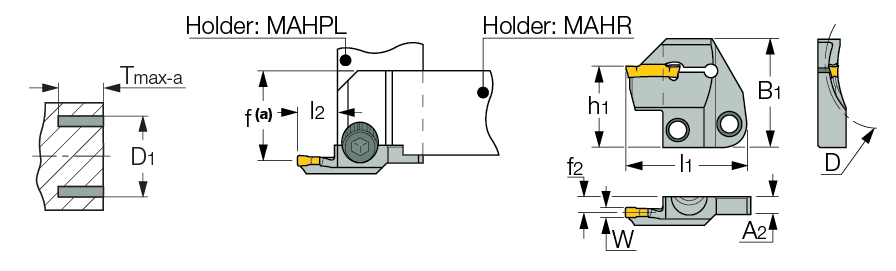

D1 minMinimum penetration diameter D1 maxMaximum penetration diameter W Tmax-a l2 f2 A2 l1 h1 B1
  100.0   200.0   6.00   20.00   21.0   4.50   6.8   45.50   24.0   32.0

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2550119 Not Available
3D Required

f(a)=f1(shank) + f2(adapter)
DGN & GRIP 6.. inserts can be used only with right-hand adapters, HGPL 6.. inserts with left-hand adapters.
For insert clamping instructions, click on "More Info".
