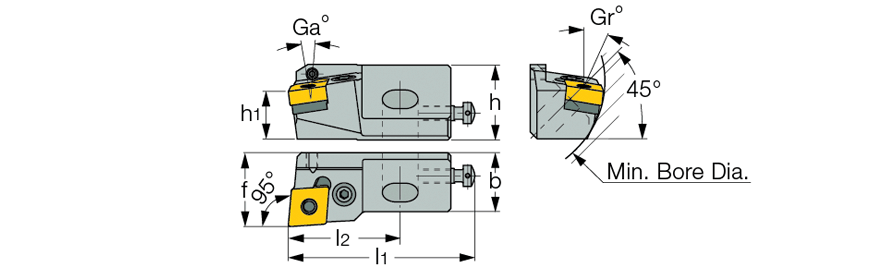

 ISO-Turning      Family: PCLNR/L-CA 95° Lead Angle Exchangeable Cartridges for 80° Negative Diamond Inserts       Designation: PCLNR 16CA-12
 Right-hand shown

Ext. 80° diamond 95° approach   Int. 80° diamond 95° approach
h h1 b l1 l2 f D minFor axial mounting Ga° Gr° R/L
  25.0   16.0   20.0   63.00   38.0   25.0   55.00   -8   -8   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3602046


5520054  5520054  TCN 423

7000168  7000168  SP 4

7000080  7000080  LR 4

7002783  7002783  LCS 4S  Details

7000039  7000039  HW 3.0

7002102  7002102  SR 76-1401  Details

7002053  7002053  SR M4X5DIN913  Details

7000036  7000036  HW 2.0

7000099  7000099  PN 3-4
