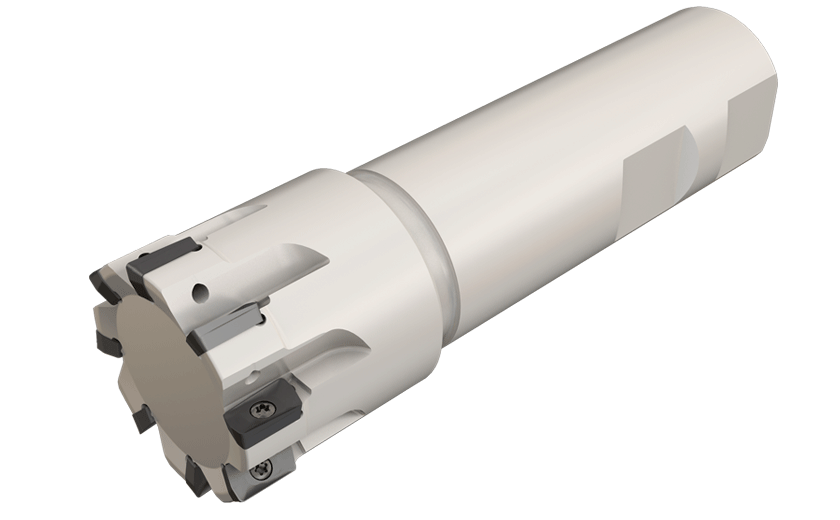

 Milling      Family: HP E90AN-07 Endmills with HELIPLUS HP ANKT 0702.. Inserts       Designation: HP E90AN-D.75-4-C.75-7C


Shouldering   Slotting   Ramp down

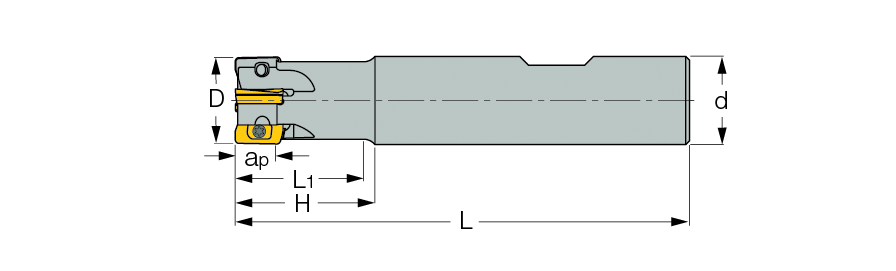

D Z ap H L1 L Rd° d Coolant Lbs ShankC-Cylindrical, W-Weldon
  .750   4   .303   1.000   .93   4.000   2.4   .750   Y   .415   C

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3103625 Not Available
3D Required		 Not Available
3D Required


7003603  7003603  SR 34-533/L/HG  Details

7003118  7003118  T-6/51


Insert tightening torque: 5.5 lbfxin
For adaptation click on "More Info".
