 ISO-Turning      Family: C#-SVJCR/L Screw Lock Toolholders for 35° Rhombic Inserts with 7° Clearance Angle and ISO 26623-1 Standard Exchangeable Shanks       Designation: C4 SVJCR-27050-11

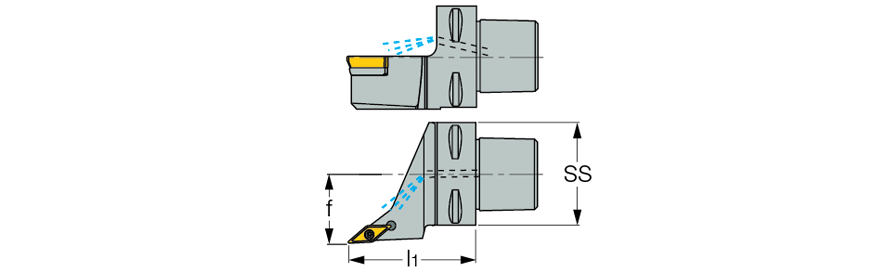

 Right-hand shown

Ext. 35° diamond 93° approach   ISO 26623-1 (CAMFIX)   COOLANT
SS f l1 R/L
  40   27.0   50.00   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3602477 Not Available
3D Required


7000891  7000891  SR 14-560/S  Details

7000273  7000273  T-8/5

7000897  7000897  EZ 83
