 Milling      Family: ETR-A2 2 Flute Toroidal Endmills       Designation: ETR-A2 10-6/40C10R3M120


Shouldering   Slotting   Ramp down

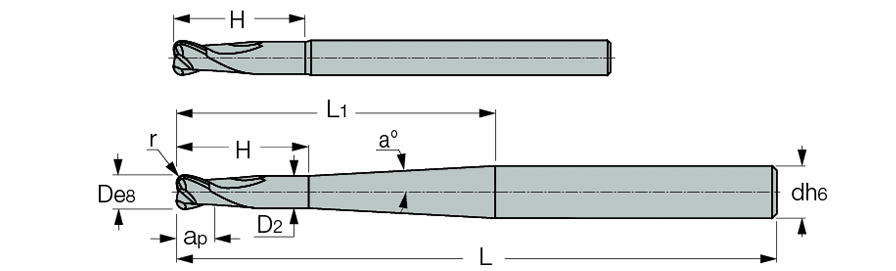

D r d D2 ap L1 L Flute H a° Rd° fz(min) fz(max)
  10.00   3.00   10.00   9.60   6.00   -   120.00   2   40.00   -   5.0   0.03   0.10

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5621870 IC900   Not Available
2D Required		 Not Available
3D Required
