 Milling      Family: ECR-B-MF 4 and 6 Flute, 45° Helix Medium Length Solid Carbide Roughing Endmills for Materials up to 65 HRc       Designation: ECR-B4MF 08-18W08-63


Shouldering   Slotting   Ramp down   Helical interpolation   Counter boring

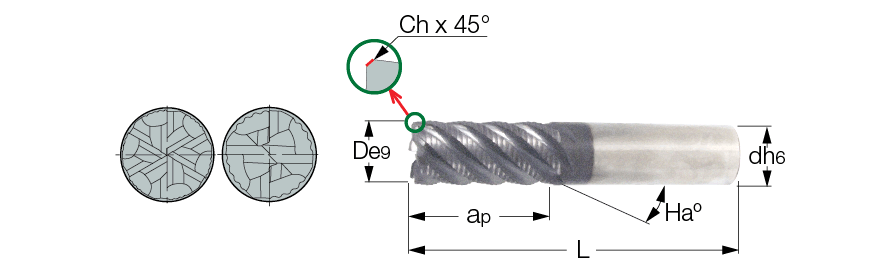

D d ap L Flute Ha° Rd° ShankC-Cylindrical, W-Weldon Ch fz(min) fz(max)
  8.00   8.00   18.00   63.00   4   45.0   5.0   W   0.30   0.03   0.08

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5622140 IC900   Not Available
2D Required		 Not Available
3D Required

The rougher's cutting edge profile has shallow serrations.
A very durable design which leaves only a small amount of material for the finishing cut.
