 ISO-Turning      Family: IM63 XMZ SLSNR/L-TANG Tools for 45° Mounting, with ISO 26622-1 XMZ Shank for Mazak Integrex Machines, Carry Tangentially Clamped Insert       Designation: IM63 XMZ SLSNR-00110-15

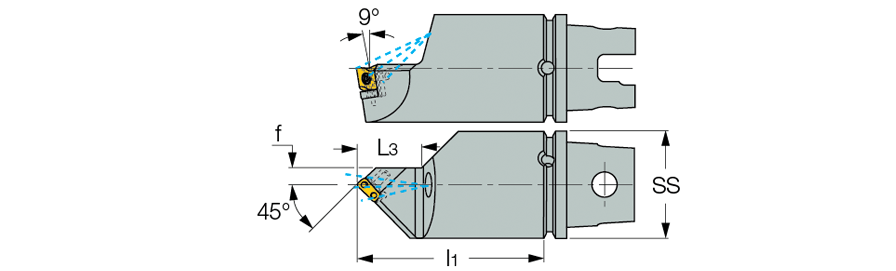

 Right-hand shown

Ext. tangential 93° approach   ISO 26622-1 (IM)   SLSNR/L-TANG  COOLANT
SS l1 f Ga° Gr° R/L
  63   4.331   .39   0   -6   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3602418 Not Available
3D Required


5520218  5520218  TLN 15R-HT

7002843  7002843  SR RS4  Details

7000428  7000428  T-6/5

7003816  7003816  SR 34-535-C  Details

7000265  7000265  T-15/5

7000900  7000900  EZ 146
