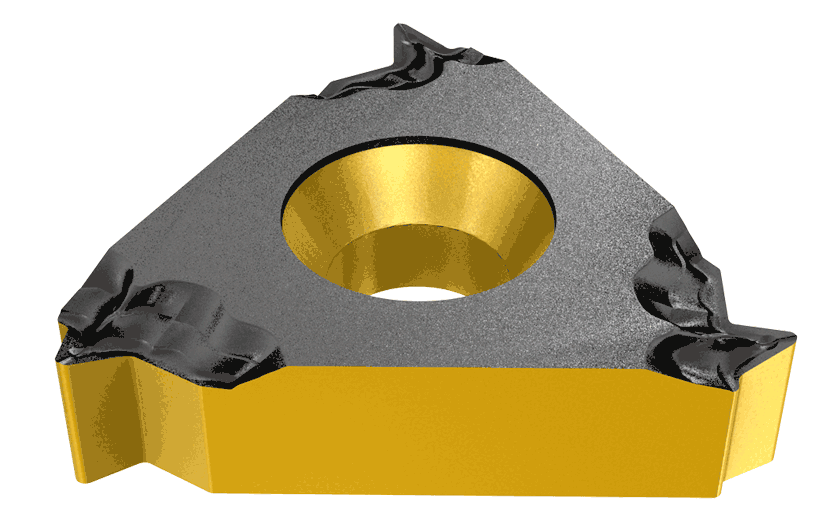

 Threading      Family: IR/L-W Internal Whitworth (BSW, BSF, BSP), B.S.84-1956 DIN 259 Medium Class, Full Profile Laydown Threading Inserts       Designation: 16IR 18 W
 Internal left-hand shown

Internal thread milling   Internal threading

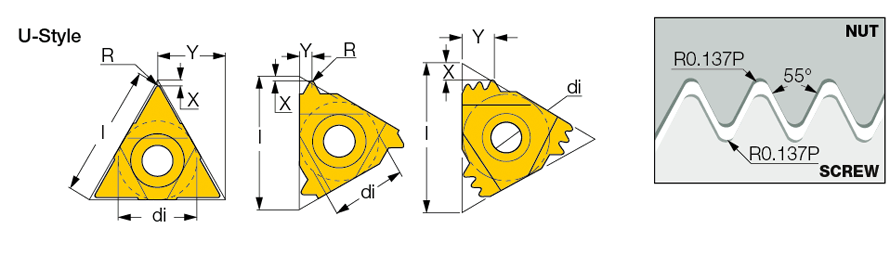

di TPI l R X Y Z
  9.52   18.0   16.00   0.16   0.8   1.0   1

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5901003 IC50M Alternative Not Available
2D Required		 Not Available
3D Required

  5902026 IC908   Not Available
2D Required		 Not Available
3D Required

  5997896 IC250 Alternative Not Available
2D Required		 Not Available
3D Required


For Insert Identification System, click on "More Info".
Tolerance: medium class.
