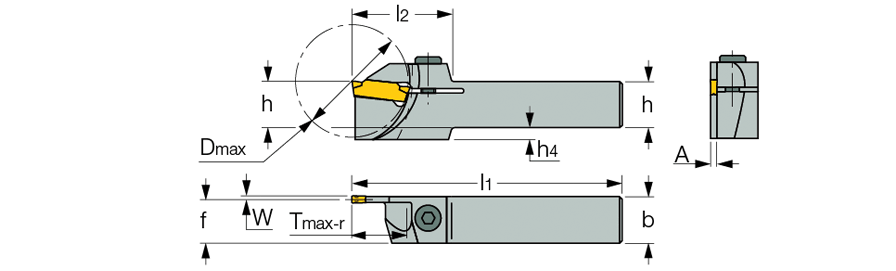

 Turn-Groove      Family: PHGR/L Holders for External Grooving and Turning       Designation: PHGR 16-2.4
 Left-hand shown

Ext. Grooving   Parting   Ext. Grooving & Turning
W min W max D maxMaximum parting diameter. Tmax-r h b l1 l2 f h4 R/L A
  .094   .125   1.34   .669   .630   .630   4.331   1.30   .59   .22   R   .075

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2800720 Not Available
3D Required


7001846  7001846  SR M5X20DIN912 12.9  Details

7000043  7000043  HW 4.0
