 Turn-Groove      Family: SXCIB Broaching Holders for Lathe and Milling Machines       Designation: SXCIB 32-38-50
 (1)W range: 5-12 mm

Ext. Broaching   Int. Broaching

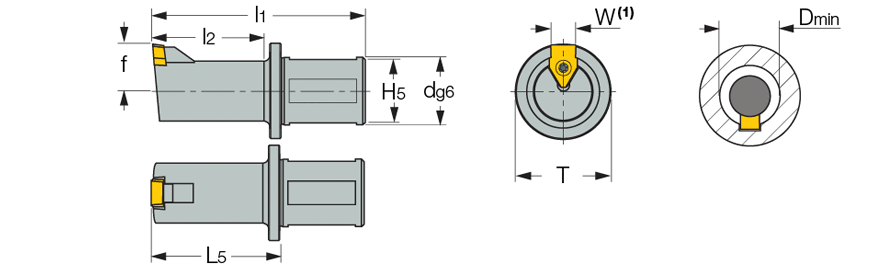

d l1 l2 L5 f D min H5 T
  32.00   100.00   50.0   60.00   22.0   38.00   30.0   45.0

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2801840 Not Available
2D Required		 Not Available
3D Required


7000269  7000269  T-20/5
