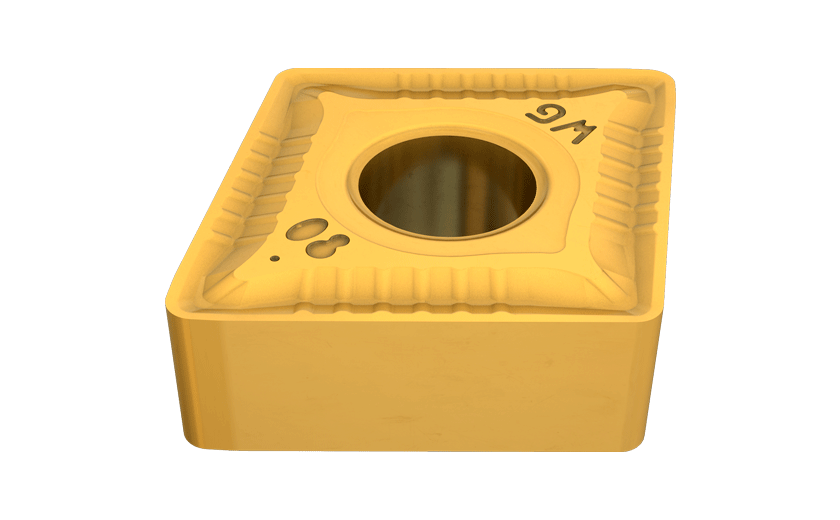

 ISO-Turning      Family: CNMG-WG Double-Sided 80° Rhombic Wiper Inserts for High Feed Turning and High Surface Finish       Designation: CNMG 120412-WG


Ext. 100° diamond 75° approach   Ext. 100° diamond, face 75°app   Ext. 80° diamond 95° approach   Int. 80° diamond 95° approach

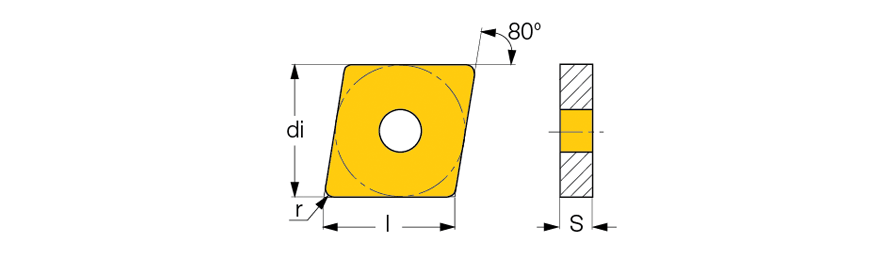

l di S r ft(min) ft(max) ap(min) ap(max)
  12.90   12.70   4.76   1.20   0.30   0.80   1.50   4.00

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5507348 IC9150 Alternative

  5550255 IC8250 Alternative


For dimensions and tolerances, see more info.
