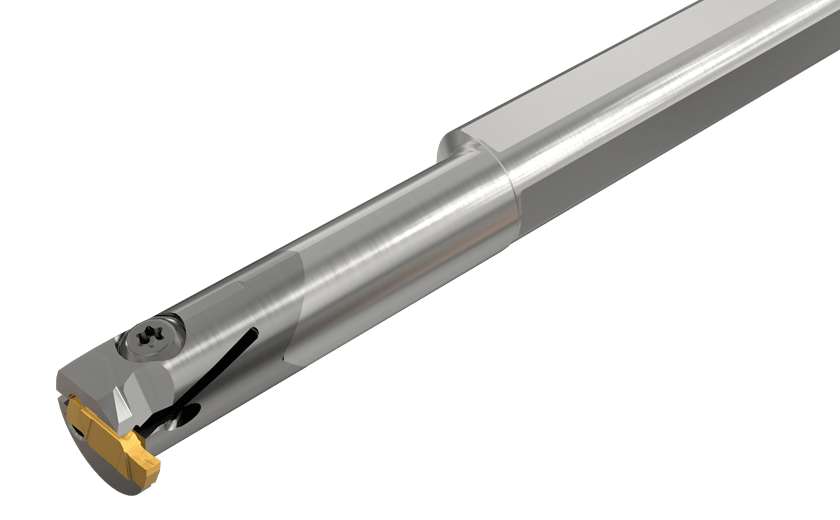

 Turn-Groove      Family: GHIR/L-SC (W=.079-.138) Grooving and Turning Solid Carbide Bars with Internal Coolant Holes       Designation: GHIR 19SC-3
 Right-hand shown

Int. Grooving   Int. grooving (side limit)   Int. Groov & Turn   Int. Profiling   Threading (Int.)   COOLANT

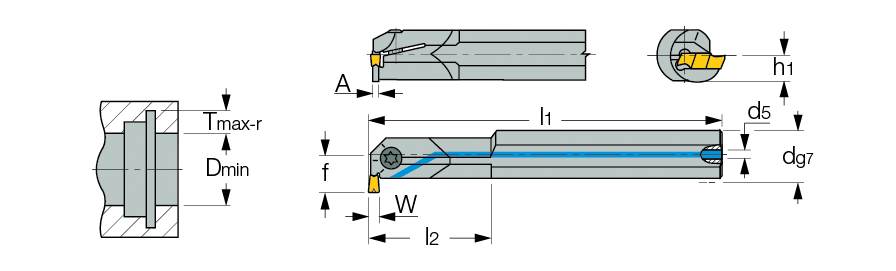

W min W max d D min Tmax-r l1 l2 f h1 A R/L
  .079   .138   .750   .787   .177   8.000   2.75   .57   .339   .065   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2800658 Not Available
2D Required		 Not Available
3D Required		 Not Available
3D Required


7000249  7000249  SR 76-1021  Details

7000269  7000269  T-20/5

7000831  7000831  PL 075


Tool head is made of steel.
For using TIPI insert, toolholder seat needs to be modified according to insert profile, to ensure clearance.
