 Multi Function Tools      Family: A-SXFOR-DR Boring and Drilling Bars for XOMT Inserts       Designation: A1612M SXFOR-06DR

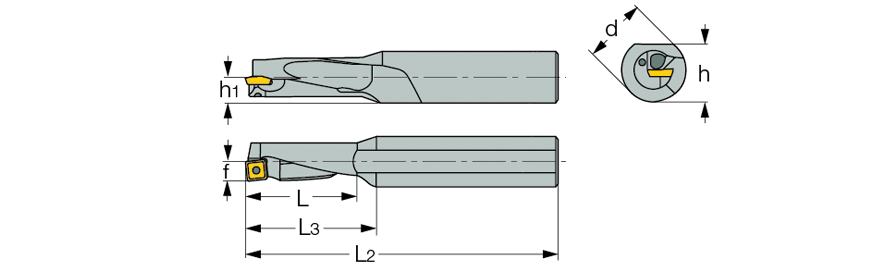

 Right-hand shown

Drilling Ext Face Int. Turning   COOLANT
d L2 L3 L f h1 Ga° Gr° h D min
  16.00   180.00   31.0   21.0   6.0   8.5   0   0   15.0   12.50

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3601292 Not Available
3D Required


7000836  7000836  SR 34-508  Details

7000270  7000270  T-7/51

7000818  7000818  PL 16
