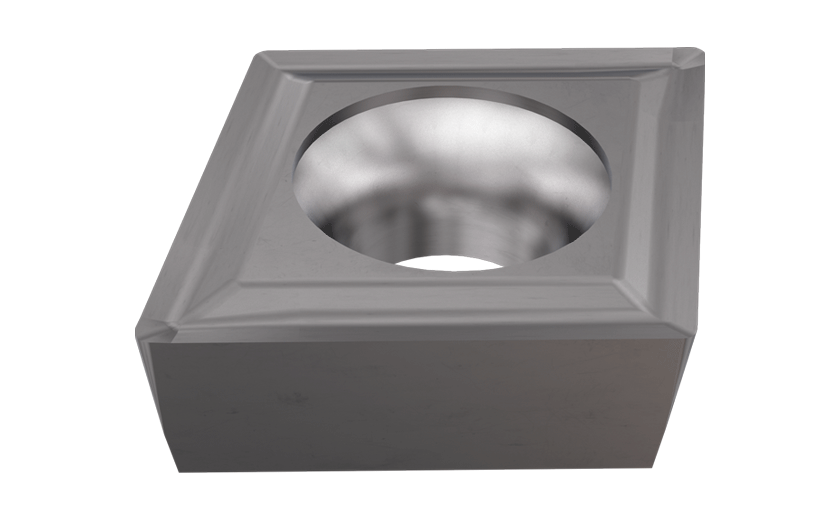

 ISO-Turning      Family: CCMT/CCGT 80° Rhombic 7° Positive Flank Inserts for Semi-Finish and Finish Turning       Designation: CCGT 060202L


Int. 80°diamond 90° approach   Int. back turnin 80° diamond   Int. chamfering 80° diamond   ITS-BORE system   Ext. 80° diamond 93° approach   Ext. 80° diamond 95° approach   Int. 80° diamond 95° approach
l di S r d1 ft(min) ft(max) ap(min) ap(max)
  6.30   6.35   2.38   0.20   2.80   0.10   0.20   0.50   2.00

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5504411 IC20   Not Available
3D Required
  Left-hand insert

  5504412 IC30N Alternative Not Available
3D Required
  Left-hand insert


For dimensions and tolerances, Click on "More Info"
Left-hand inserts for left-hand external tools and for right-hand internal tools.
