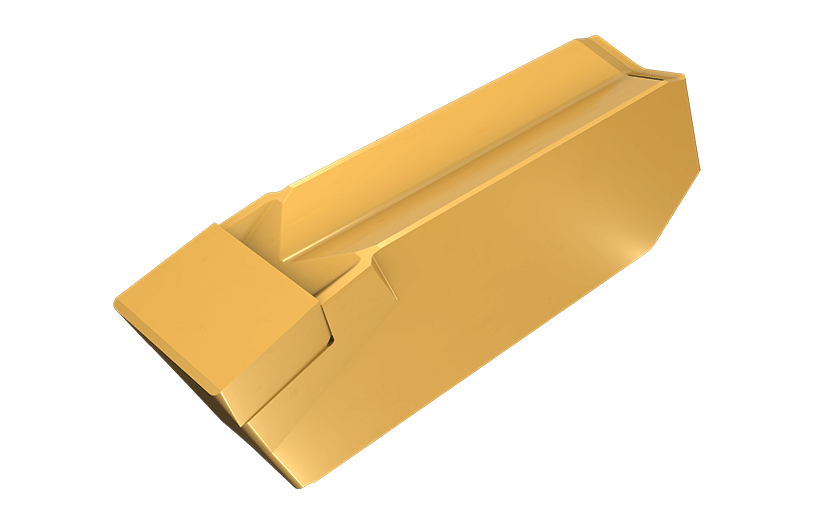

 Turn-Groove      Family: GITM CBN Tipped Inserts for Turning and Grooving on Hard Ferrous Materials       Designation: GITM 4.00K-0.20
 HARD MATERIALS

Ext. Grooving   Ext. Grooving & Turning   Int. Grooving   Int. Groov & Turn

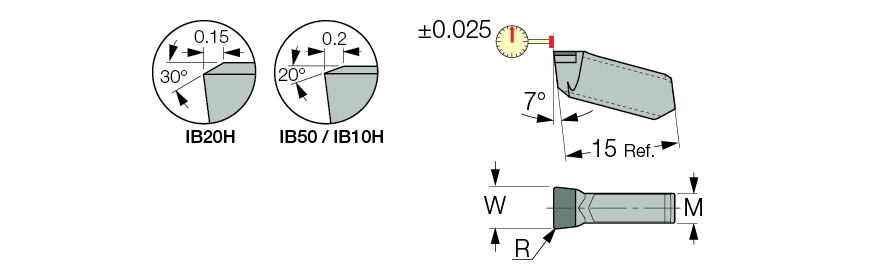

W±0.02 R±0.05 M ap(min) ap(max) ft(min) ft(max) fg(min) fg(max)
  4.00   0.20   3.2   0.00   0.40   0.03   0.09   0.02   0.07

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  6402559 IB50

  6404168 IB20H

  6404169 IB10H


Dmin for internal machining = 70 mm
