 Threading      Family: MGSIR/L Solid Carbide Bars for Internal Turning and Threading       Designation: MGSIR 08-06W

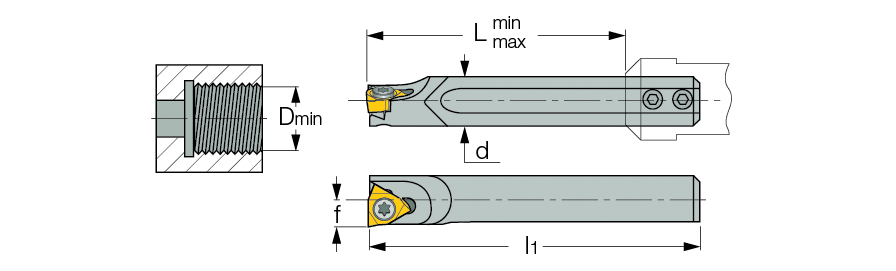

 Right-hand shown

Int. 80° trigon 91° approach   Internal threading   COOLANT
d l1 L minAdjustment range L maxAdjustment range f D min
  8.00   72.00   20.0   56.0   5.0   9.20

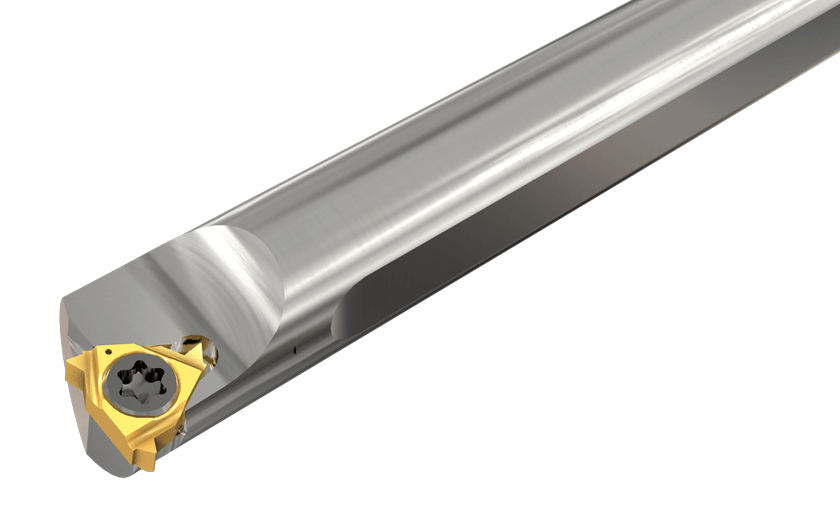

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2800948
  For WBMT 060102 Dmin=8.8 mm f=5.20 mm


7000427  7000427  SR 14-552  Details

7000428  7000428  T-6/5


91° for shoulder depth up to 2 mm
Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools.
In order to maintain high machining reliability we strongly recommend replacing the clamping screw every 10 insert indexes.
