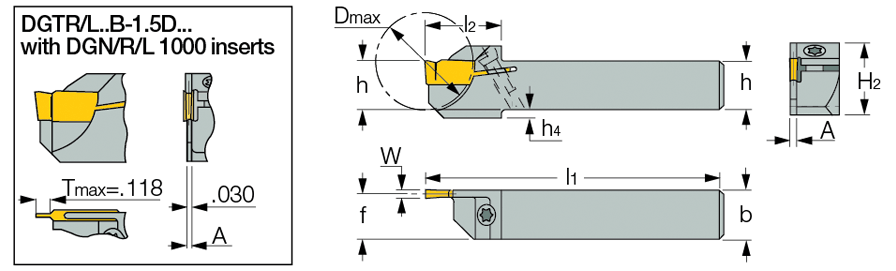

 Turn-Groove      Family: DGTR/L-B-D-SH Parting and Grooving, Short Head Tools, for CNC and Swiss Automatics       Designation: DGTL 9.5B-2D20SH
 Left-hand shown
 Right-hand shown
Ext. Grooving   Parting
W min W max h b A f l2 D max H2 h4 l1 R/L
  .075   .098   .375   .375   .063   .34   .75   .79   .62   .10   4.700   L

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2301528


7000225  7000225  SR 16-236 P  Details

7000265  7000265  T-15/5


DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on "More Info"
