 Tooling Systems - KM®                    OPTIONS: Position the cursor on the picture for a description Cutting Conditions Machine Power

Holders for all GRIP adapters, 45° mounting on Turn-Mill machines with KM® XMZ adaptation (for Mazak Integrex machines). KM63 XMZ MAHDR-45
Holders for all GRIP adapters, 45° mounting on Turn-Mill machines with KM® XMZ adaptation (for Mazak Integrex machines).

Holders for all grip systems, parting, grooving and facing adapters with KM® XMZ adaptation. KM63 XMZ MAHDOR
Holders for all grip systems, parting, grooving and facing adapters with KM® XMZ adaptation.

Holders for all GRIP adapters, 10° mounting on Turn-Mill machines with KM® XMZ adaptation (for Mazak Integrex machines). KM63 XMZ MAHUR/L
Holders for all GRIP adapters, 10° mounting on Turn-Mill machines with KM® XMZ adaptation (for Mazak Integrex machines).

Blocks for parting and grooving blades with KM® XMZ adaptation (for Mazak Integrex machines). KM63 XMZ TBK-R/L
Blocks for parting and grooving blades with KM® XMZ adaptation (for Mazak Integrex machines).

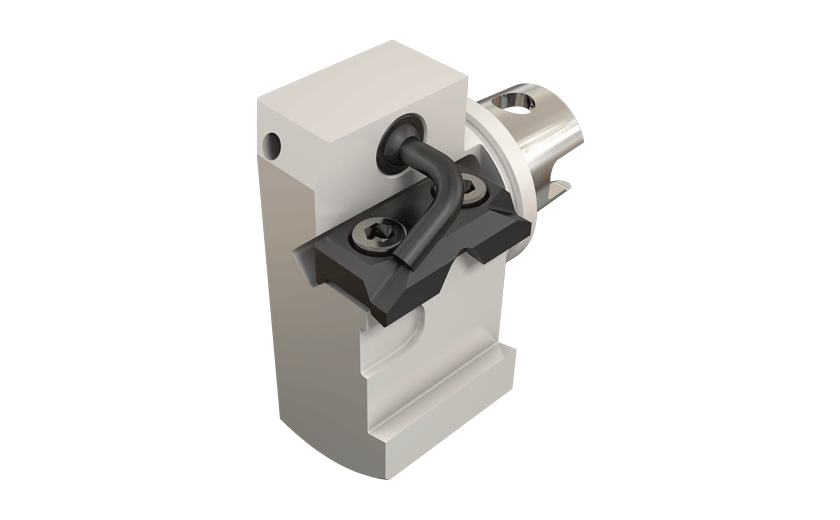

Blocks for blades with a KM® adaptation. KM-TBU
Blocks for blades with a KM® adaptation.

Holders for all grip systems, parting, grooving and facing adapters with KM® adaptation. KM-MAHD
Holders for all grip systems, parting, grooving and facing adapters with KM® adaptation.

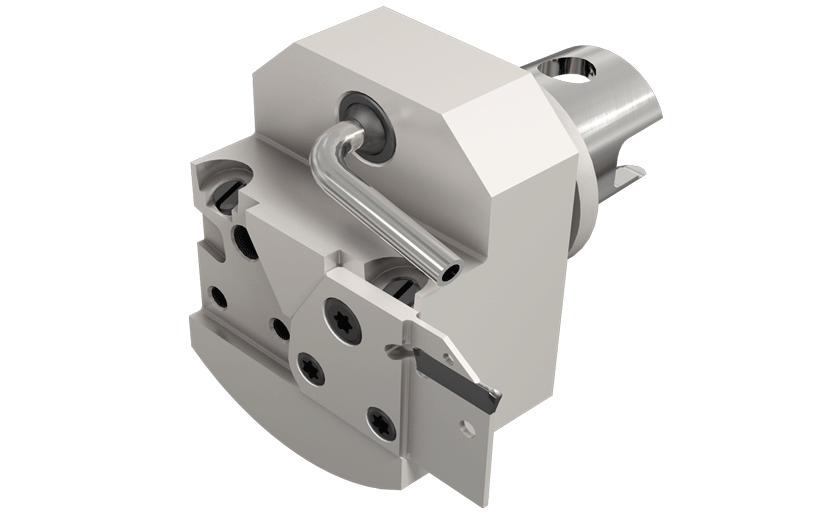

Perpendicular holders with KM® adaptation for MODULAR-GRIP parting, grooving, turning and facing adapters. KM-MAHPD
Perpendicular holders with KM® adaptation for MODULAR-GRIP parting, grooving, turning and facing adapters.

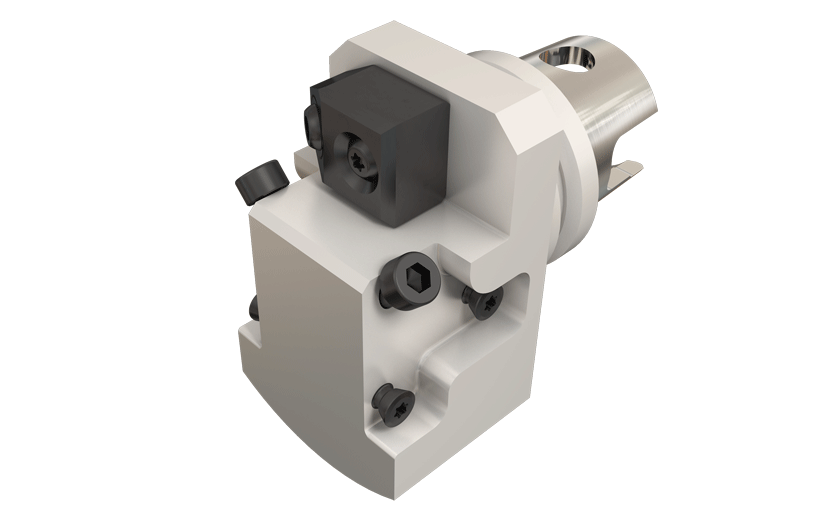

Holders with a KM® adaptation for grooving and turning adapters. KM-GHAD-8
Holders with a KM® adaptation for grooving and turning adapters.

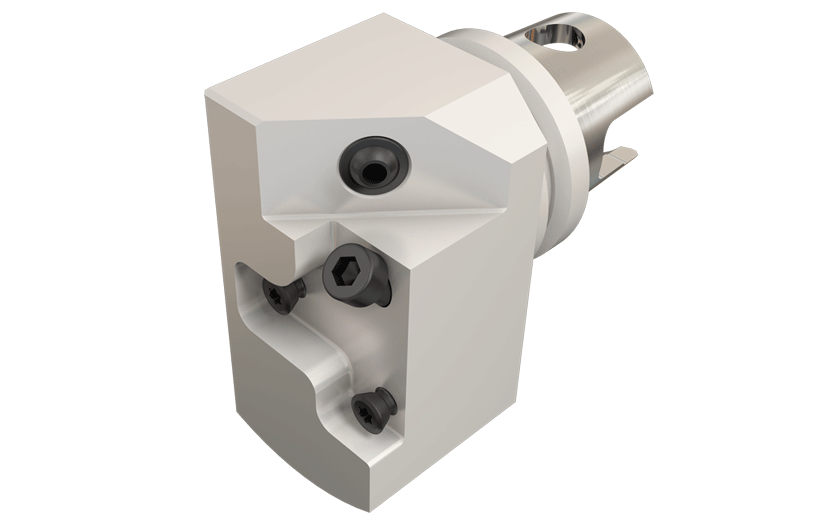

Holders with KM® adaptation for perpendicularly oriented grooving and turning adapters. KM-GHAPR/L-8
Holders with KM® adaptation for perpendicularly oriented grooving and turning adapters.

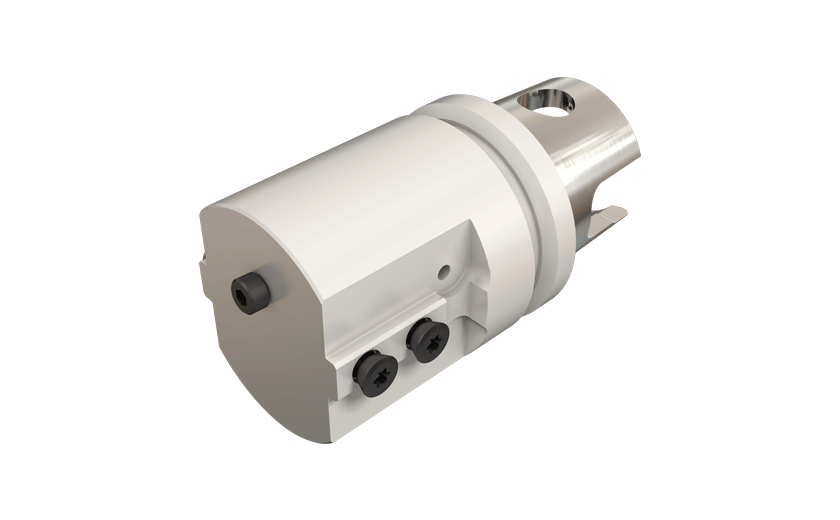

Holders for internal facing adapters with a KM® adaptation. KM-HAD
Holders for internal facing adapters with a KM® adaptation.

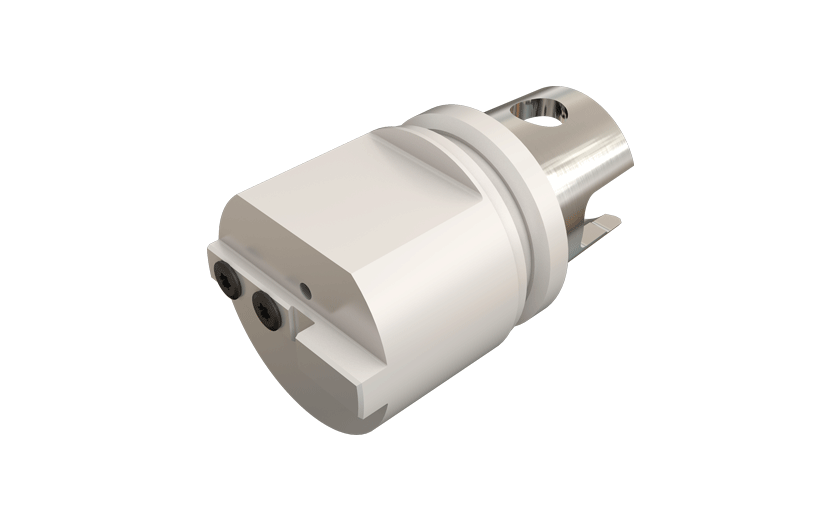

Holders for facing adapters with a KM® adaptation. KM-HAPR/L
Holders for facing adapters with a KM® adaptation.

Holders for LNMX-HT - high production cutting, tangentially screw clamped inserts with KM® XMZ adaptation. KM63 XMZ SLANR/L-TANG
Holders for LNMX-HT - high production cutting, tangentially screw clamped inserts with KM® XMZ adaptation.

Holder for LNMX-HT tangentially clamped inserts with KM® adaptation. KM-SLANR/L-TANG
Holder for LNMX-HT tangentially clamped inserts with KM® adaptation.

Tools for 45° mounting, with KM® XMZ adaptation (for Mazak Integrex machines), carrying tangentially clamped inserts. KM63 XMZ SLSNR/L-TANG
Tools for 45° mounting, with KM® XMZ adaptation (for Mazak Integrex machines), carrying tangentially clamped inserts.

Holders for LNMX-HT tangentially clamped inserts with KM® adaptation. Used for high feed and large DOC applications. KM-SLFNR/L-TANG
Holders for LNMX-HT tangentially clamped inserts with KM® adaptation. Used for high feed and large DOC applications.

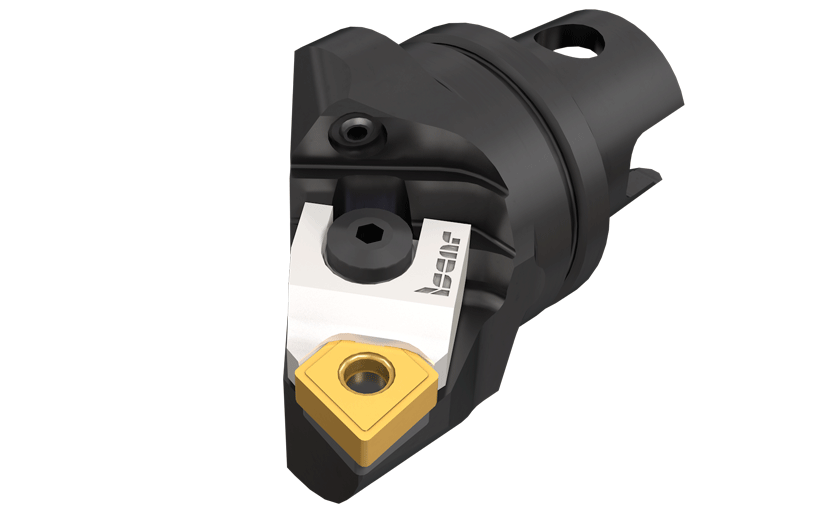

MULTI-WEDGE lock holder with KM® adaptation, for negative 80° rhombic, trigon and square inserts. KM-MULNR/L-MW
MULTI-WEDGE lock holder with KM® adaptation, for negative 80° rhombic, trigon and square inserts.

Screw-clamp holders with KM® adaptation for positive 80° rhombic 7° clearance inserts. KM-SCLCR/L
Screw-clamp holders with KM® adaptation for positive 80° rhombic 7° clearance inserts.

COMLOCK holders, with KM® adaptation, for negative, 80° rhombic inserts. KM-MCLNR/L
COMLOCK holders, with KM® adaptation, for negative, 80° rhombic inserts.

R-CLAMP, holders with KM® adaptation, for negative, 55° rhombic inserts. KM-DDJNR/L
R-CLAMP, holders with KM® adaptation, for negative, 55° rhombic inserts.

Lever lock holders with KM® adaptation for negative 55° rhombic inserts. KM-PDJNR/L
Lever lock holders with KM® adaptation for negative 55° rhombic inserts.

Screw lock holders with KM® adaptation for negative 35° rhombic inserts. KM-SVJNR/L-F
Screw lock holders with KM® adaptation for negative 35° rhombic inserts.

Screw clamp, exchangeable heads for negative, 35° rhombic inserts with a KM® adaptation. KM-SVVNN-F
Screw clamp, exchangeable heads for negative, 35° rhombic inserts with a KM® adaptation.

Screw-lock holders with KM® adaptation for 7° clearance, 35° rhombic inserts. KM-SVVCN
Screw-lock holders with KM® adaptation for 7° clearance, 35° rhombic inserts.

COMLOCK holders for negative 35  diamond inserts. With KM® adaptation. KM-MVJNR/L
COMLOCK holders for negative 35 diamond inserts. With KM® adaptation.

COMLOCK holders with KM® adaptation for negative 35° rhombic inserts. KM-MVVNN
COMLOCK holders with KM® adaptation for negative 35° rhombic inserts.

Lever lock, exchangeable heads for negative, triangular inserts with a KM® adaptation. KM-PTGNR/L
Lever lock, exchangeable heads for negative, triangular inserts with a KM® adaptation.

R-CLAMP, turning tools with KM® adaptation, for ISO DNMG negative inserts. KM-DTGNR/L
R-CLAMP, turning tools with KM® adaptation, for ISO DNMG negative inserts.

Screw-lock holders, with KM® adaptation, for 7° clearance 55° rhombic inserts. KM-SDJCR/L
Screw-lock holders, with KM® adaptation, for 7° clearance 55° rhombic inserts.

Screw lock holders with KM® adaptation for 7° clearance 55° rhombic inserts. KM-SDNCN
Screw lock holders with KM® adaptation for 7° clearance 55° rhombic inserts.

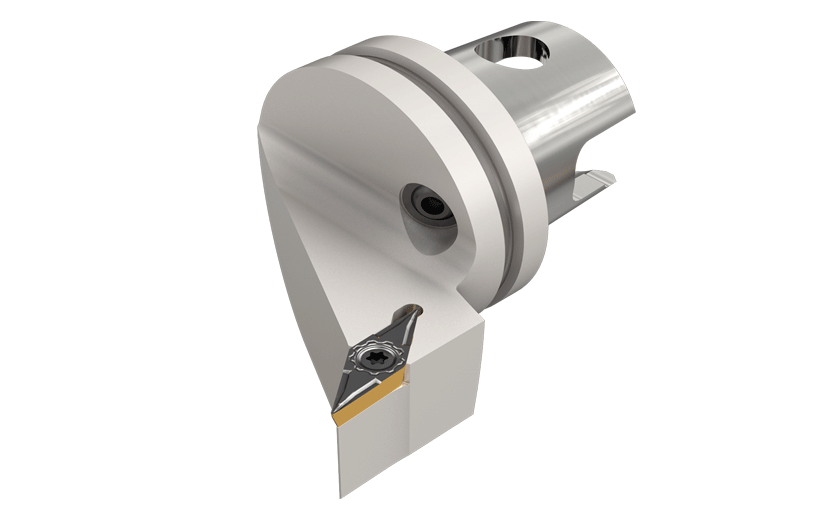

Screw lock holders with KM® adaptation for 7° clearance 35° diamond inserts. KM-SVJCR/L
Screw lock holders with KM® adaptation for 7° clearance 35° diamond inserts.

Screw-lock holders, with KM® adaptation, for 7° clearance, round inserts. KM-SRGCR/L
Screw-lock holders, with KM® adaptation, for 7° clearance, round inserts.

Screw-lock, neutral holders with KM® adaptation, for 7° clearance round inserts. KM-SRDCN
Screw-lock, neutral holders with KM® adaptation, for 7° clearance round inserts.

Holder for external turning tools with a KM® adaptation. KM-ADE
Holder for external turning tools with a KM® adaptation.

Holders for external shank tools with KM® adaptation. KM-ADES
Holders for external shank tools with KM® adaptation.

Holders for boring-bars with a KM® adaptation. KM-ADI
Holders for boring-bars with a KM® adaptation.

Holders for boring bars with sleeve adapters, can be used on turn-mill machines. KM63 XMZ-ABB
Holders for boring bars with sleeve adapters, can be used on turn-mill machines.

CLICKFIT to KM XMZ Adapter KM63 XMZ ADE CF
CLICKFIT to KM XMZ Adapter

Tools for internal groonig and turning with KM® adaptation. KM-HFIR/L-MC
Tools for internal groonig and turning with KM® adaptation.
