 ISO-Turning - Ext. 90°square face&turn 45°ap                    OPTIONS: Position the cursor on the picture for a description Cutting Conditions Machine Power

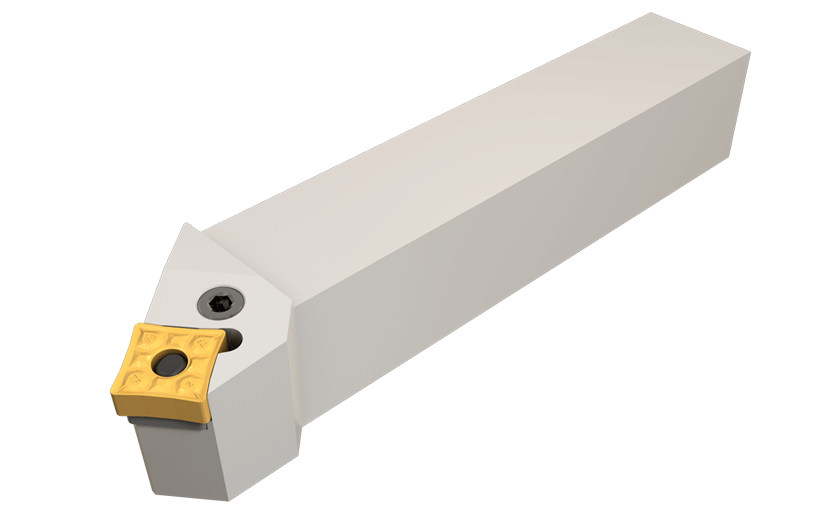

LeverLock holders for negative inserts with four 80° corners. PQSNR/L
LeverLock holders for negative inserts with four 80° corners.

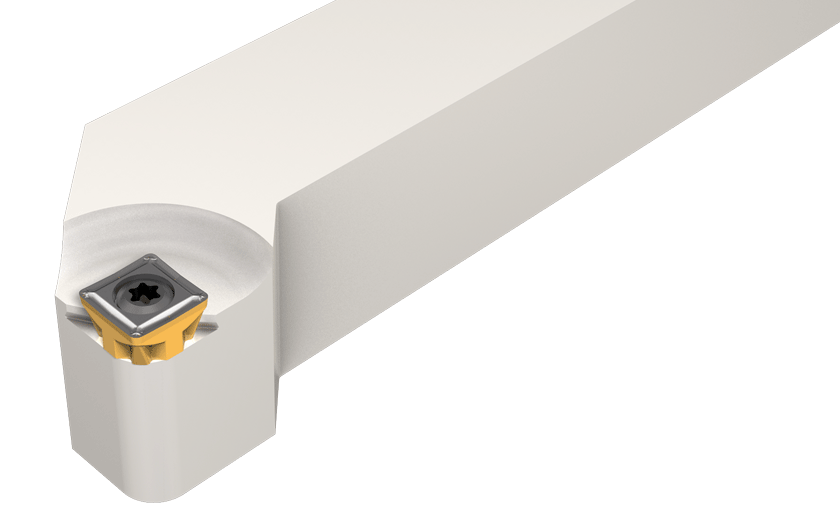

Screw lock holders for four types of inserts with 7° clearance. SUXCR/L-CM
Screw lock holders for four types of inserts with 7° clearance.

External holder 45° lead angle, for negative, square ceramic dimpled inserts. TSSNR/L-CH
External holder 45° lead angle, for negative, square ceramic dimpled inserts.

Lever lock holders for negative square inserts. 45° lead angle for face and longitudinal turning. PSSNR/L
Lever lock holders for negative square inserts. 45° lead angle for face and longitudinal turning.

Cartridges for negative square inserts. 45° lead angle for face and longitudinal turning. PSSNR/L-CA
Cartridges for negative square inserts. 45° lead angle for face and longitudinal turning.

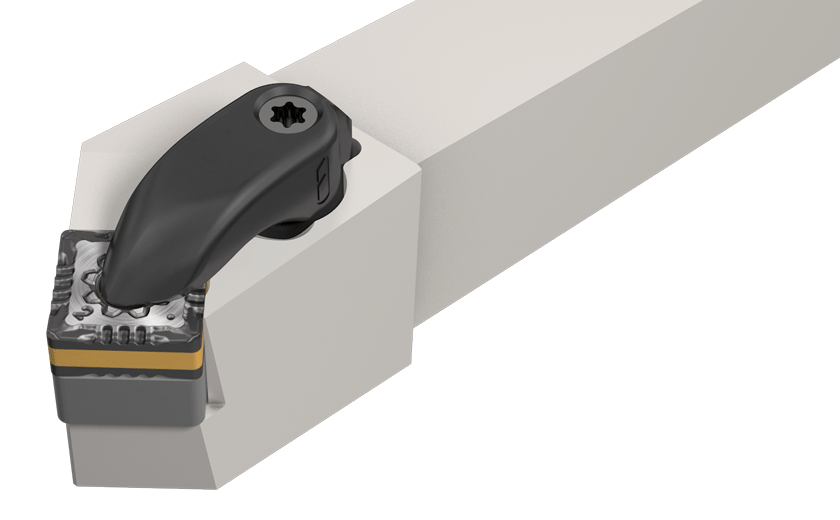

R-Clamp external holder, 45° lead angle, for negative, square inserts. DSSNR/L
R-Clamp external holder, 45° lead angle, for negative, square inserts.

Clamp-lock holders for ceramic square negative inserts. Used for longitudinal and face turning. CSSNR/L-CE
Clamp-lock holders for ceramic square negative inserts. Used for longitudinal and face turning.

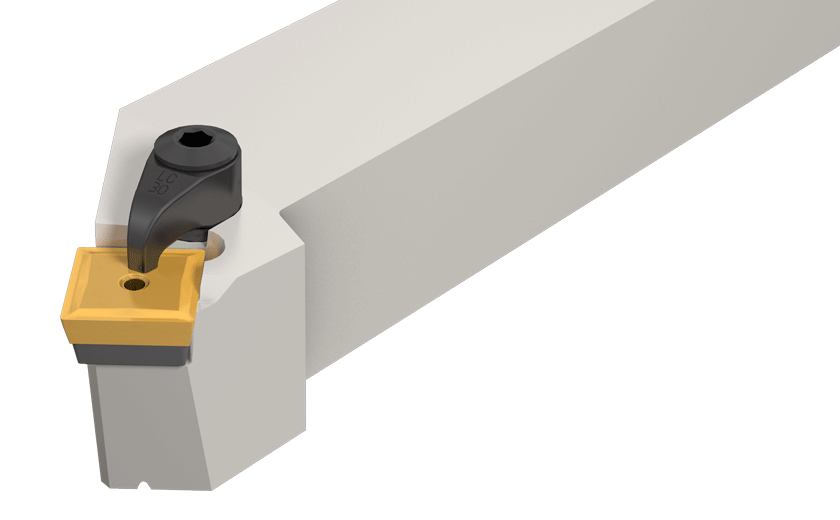

Clamp lock holders for 11° clearance square inserts. Used for longitudinal and face turning. CSSPR/L
Clamp lock holders for 11° clearance square inserts. Used for longitudinal and face turning.

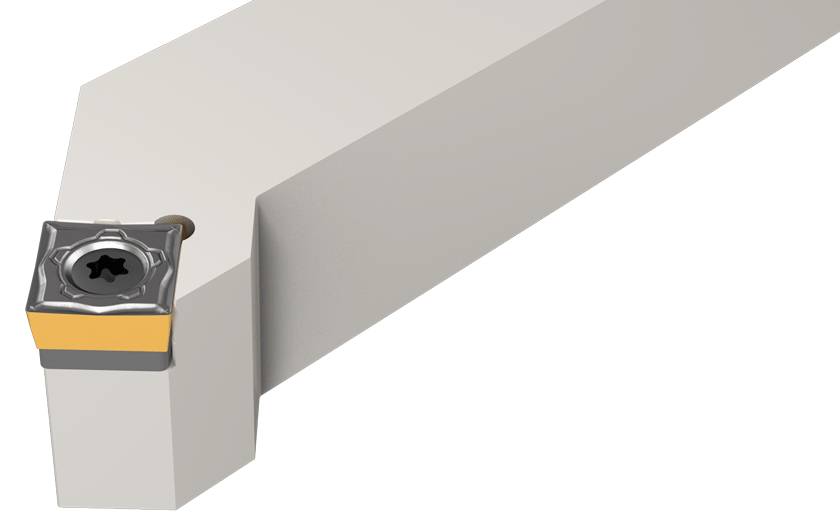

Screw-lock holders for 7° clearance square inserts. Used for longitudinal and face turning. SSSCR/L
Screw-lock holders for 7° clearance square inserts. Used for longitudinal and face turning.
