 Drilling - Center alignment devices                    OPTIONS: Position the cursor on the picture for a description

Center Alignment DIN 6499 ER Collet Chucks with DIN 69871 Form A/B Taper Shanks ADJ DIN69871-ER
Center Alignment DIN 6499 ER Collet Chucks with DIN 69871 Form A/B Taper Shanks

FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and DIN69893 form A HSK Taper Shank ADJ HSK A-ER
FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and DIN69893 form A HSK Taper Shank

FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and BT MAS-403 Taper Shank ADJ BT-ER
FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and BT MAS-403 Taper Shank

FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and a Straight Shank ADJ ST-ER
FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and a Straight Shank

GYRO ER collet center alignment device with a straight shank. GYRO ST-ER
GYRO ER collet center alignment device with a straight shank.

GYRO VDI DIN 69880 holders with DIN 6499 for ER center alignment holder. GYRO DIN69880-ER
GYRO VDI DIN 69880 holders with DIN 6499 for ER center alignment holder.

FINEFIT Center Alignment Shank and Base with a CAMFIX Adaptations. (Used for specially tailored tool holders) ADJ C-ER
FINEFIT Center Alignment Shank and Base with a CAMFIX Adaptations. (Used for specially tailored tool holders)

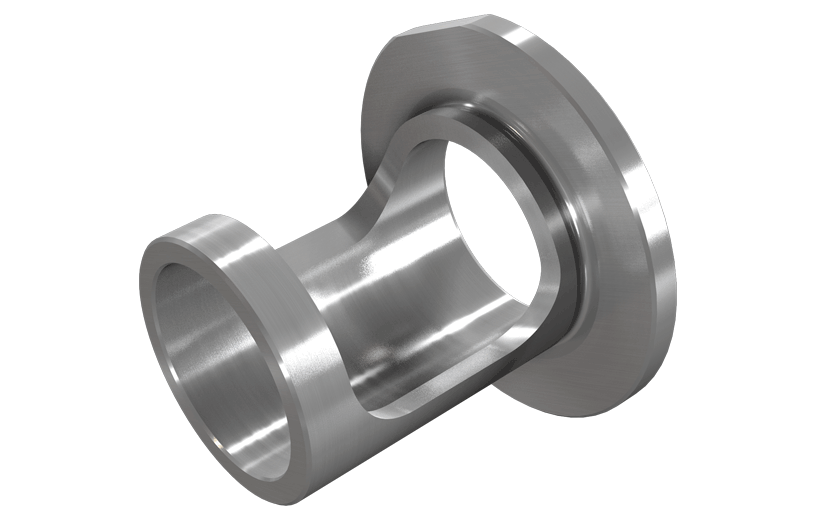

Eccentric sleeves are used for enlarging or reducing DR nominal drilling diameter by shifting the drill off center. ECCENTER SLEEVE
Eccentric sleeves are used for enlarging or reducing DR nominal drilling diameter by shifting the drill off center.
