 Tooling Systems - DIN 69871                    OPTIONS: Position the cursor on the picture for a description Cutting Conditions Machine Power

DIN 6499 ER collet chuck with a DIN 69871 form A/B taper shank. DIN69871-ER (Form A/B)
DIN 6499 ER collet chuck with a DIN 69871 form A/B taper shank.

FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and DIN 69871 form A/B Taper Shank ADJ DIN69871-ER
FINEFIT DIN 6499 ER Collet Chuck with Center Alignment and DIN 69871 form A/B Taper Shank

SHORTIN short ER collet chuck with a DIN 69871 form A/B taper shank. DIN69871-ER-SHORT(SHORTIN)
SHORTIN short ER collet chuck with a DIN 69871 form A/B taper shank.

BALANCIN DIN 6499 balanceable ER collet chucks with a DIN 69871 taper shank. DIN69871-ER-BIN (BALANCIN)
BALANCIN DIN 6499 balanceable ER collet chucks with a DIN 69871 taper shank.

MAXIN power chuck with DIN 69871 form A/B taper shank. DIN69871-MAXIN
MAXIN power chuck with DIN 69871 form A/B taper shank.

Hydraulic Chucks with DIN69781 Form A/B Shanks DIN69871-HYDRO
Hydraulic Chucks with DIN69781 Form A/B Shanks

Heavy Duty, Short Hydraulic Chucks with DIN69781 Form A/B Shanks DIN69871-HYDRO (Heavy duty)
Heavy Duty, Short Hydraulic Chucks with DIN69781 Form A/B Shanks

DIN 6359 short, side clamp endmill holder with a DIN 69871 taper shank. DIN69871-EM(DIN 6359 SHORT)
DIN 6359 short, side clamp endmill holder with a DIN 69871 taper shank.

DIN 6359 holders with DIN 69871 form A/B taper shanks for DIN 1835 form B Weldon shanks. DIN69871-EM(DIN1835 Form A/B
DIN 6359 holders with DIN 69871 form A/B taper shanks for DIN 1835 form B Weldon shanks.

DIN 6359 holders with DIN 69871 form A/B taper shanks for DIN 1835 form E whistle notch shanks. DIN69871-EM(DIN 1835 Form E)
DIN 6359 holders with DIN 69871 form A/B taper shanks for DIN 1835 form E whistle notch shanks.

SHRINKIN thermal shrinking chuck with DIN 69871 form A/B taper shank. DIN69871-SRK
SHRINKIN thermal shrinking chuck with DIN 69871 form A/B taper shank.

SHRINKIN thermal chucking collet with integral DIN 69871 form A/B taper shank. DIN69871-SRKIN
SHRINKIN thermal chucking collet with integral DIN 69871 form A/B taper shank.

ISO 3937 shell mill holder with a DIN 69871 form A taper shank. DIN69871-SEM
ISO 3937 shell mill holder with a DIN 69871 form A taper shank.

DIN 6357 face mill holder with a DIN 69871 form A taper shank. DIN69871-FM
DIN 6357 face mill holder with a DIN 69871 form A taper shank.

DIN 6358 COMBI shell mill holder with a DIN 69871 form A taper shank. DIN69871-SEMC
DIN 6358 COMBI shell mill holder with a DIN 69871 form A taper shank.

DIN 238 drill chuck arbor with a DIN 69871 form A taper shank. DIN69871-DC-B (Form A)
DIN 238 drill chuck arbor with a DIN 69871 form A taper shank.

DIN 2080, DIN 69871/A and BT MAS-403 adapters with a DIN 69871 form A taper shank. DIN69871-AD
DIN 2080, DIN 69871/A and BT MAS-403 adapters with a DIN 69871 form A taper shank.

Short endmills holder, DIN 6359 with adjustable nozzle and DIN 69871 form A/B taper shank. DIN69871-EM(Coolant nozzle)
Short endmills holder, DIN 6359 with adjustable nozzle and DIN 69871 form A/B taper shank.

DIN 6383 Morse taper adapter with a DIN 228-2 form D tang and a DIN 69871 form A taper shank. DIN69871-MT
DIN 6383 Morse taper adapter with a DIN 228-2 form D tang and a DIN 69871 form A taper shank.

DIN 6364 Morse taper adapter with a DIN 228-2 form B draw bar and a DIN 69871 form A taper shank. DIN69871-MT-DRW
DIN 6364 Morse taper adapter with a DIN 228-2 form B draw bar and a DIN 69871 form A taper shank.

FITBORE holder with a DIN69871 taper shank. Used for adjusting the drilling diameter by center offsetting. FITBORE DIN69871-EM
FITBORE holder with a DIN69871 taper shank. Used for adjusting the drilling diameter by center offsetting.

DIN69871 form A/B shank, with a balanceable MAXIN POWER chuck. DIN69871-MAXIN-BIN(BALANCIN)
DIN69871 form A/B shank, with a balanceable MAXIN POWER chuck.

DIN 6499  ER tapping attachment with a DIN 69871 form A taper shank. GTI DIN69871-ER (Tapping)
DIN 6499 ER tapping attachment with a DIN 69871 form A taper shank.

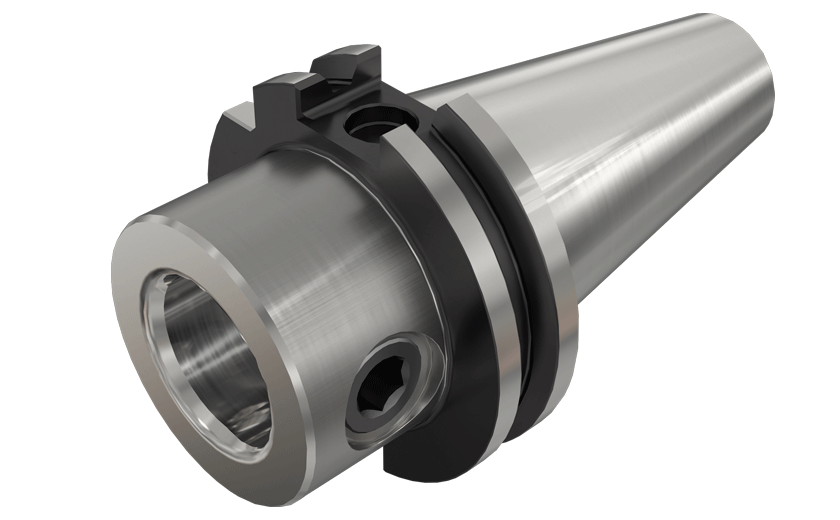

CLICKFIT modular system connection with a DIN69871 taper shank. DIN69871-CF (CLICKFIT)
CLICKFIT modular system connection with a DIN69871 taper shank.

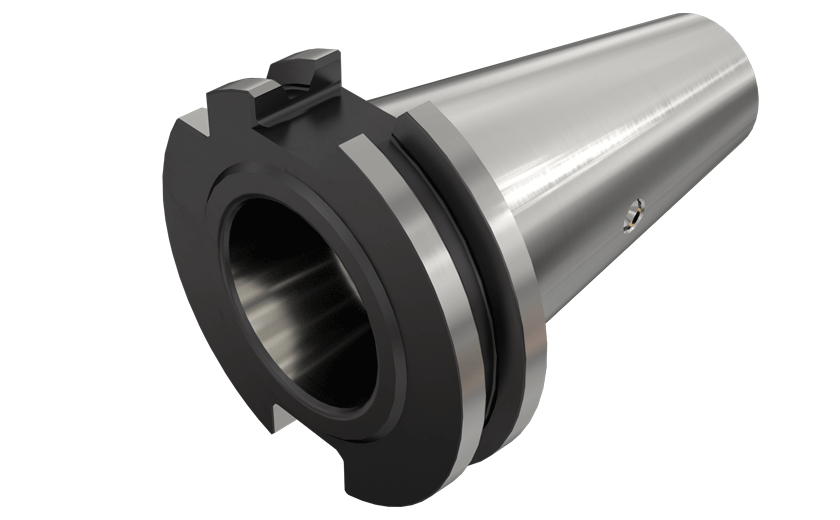

CLICKIN quick change connection with a DIN69871 taper shank. DIN69871-ER (CLICKIN)
CLICKIN quick change connection with a DIN69871 taper shank.

FLEXFIT threaded adaptation with integral DIN69871 taper shank. Balanced to G2.5 at 20.000 RPM. DIN69871-ODP (FLEXFIT)
FLEXFIT threaded adaptation with integral DIN69871 taper shank. Balanced to G2.5 at 20.000 RPM.

FINEFIT Center Alignment Shank and Base with a DIN 69871 Taper Shank (Used for specially tailored tool holders). ADJ DIN69871....
FINEFIT Center Alignment Shank and Base with a DIN 69871 Taper Shank (Used for specially tailored tool holders).
