ISCAR Cutting Tools - Metal Working Tools - H490 SM-12 : 3106260

Family Designation: H490 SM-12

Extended flute shell mills using H490 ANKX 09.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE).

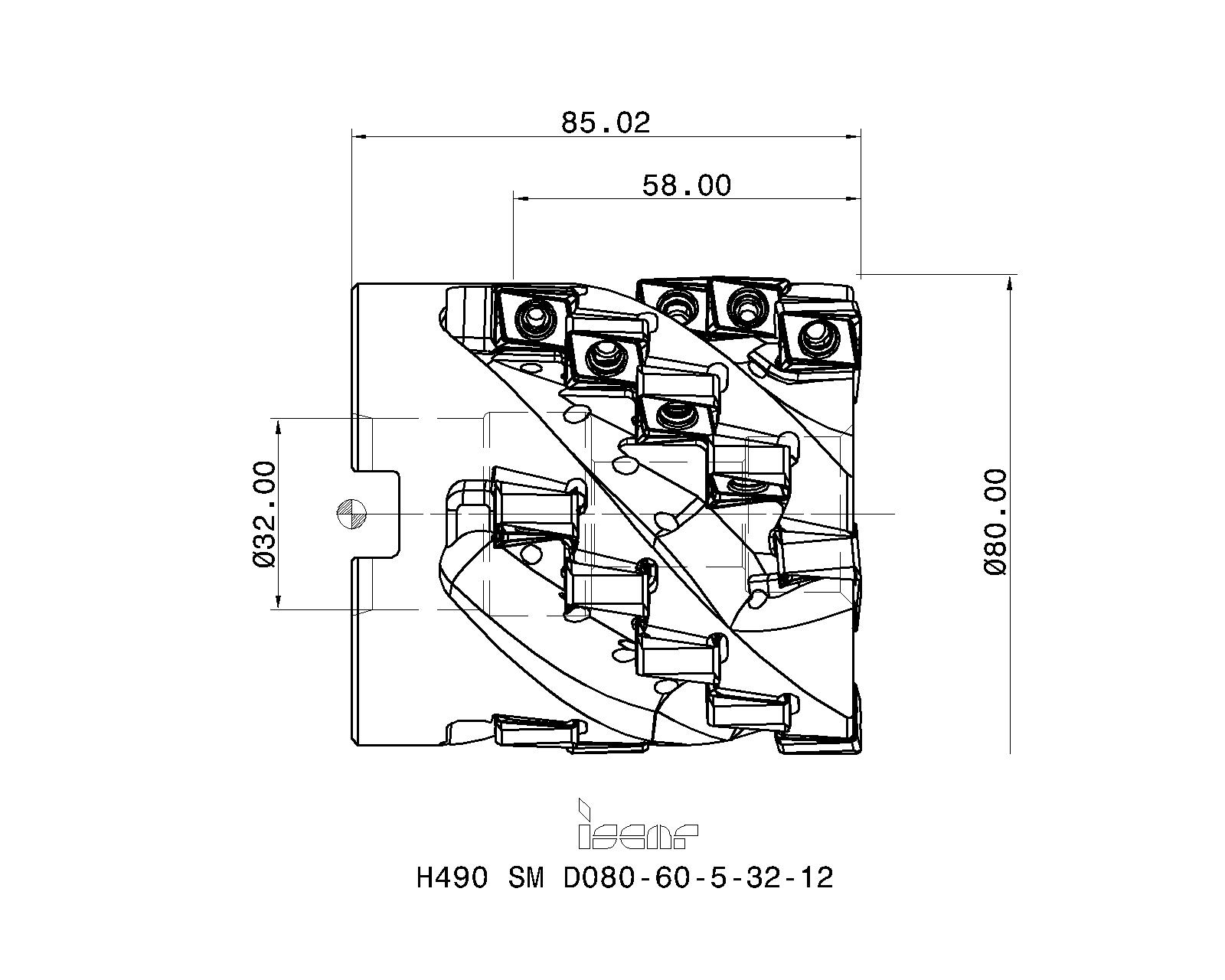

Item Designation: H490 SM D080-60-5-32-12

DC	CICT	NOF	APMX	OAL	DHUB	DCONMS	Arbor			L3	HAND	PD	PD-FW	Insert	Mod	Ys (WTA)	Xs (LTA)	ISYC-win	Semi- (Q)	Pocket	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	GTC	KAPR	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	CSP	CUBPMS	CZCMS	IIC	RMPX	RPMX	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
80.00	25	5	58.00	65.00	77.00	32.00	A	0.00	Y~	12.00~	R~	RF~	XF~	H490 ANKX 12~	120~	40.00~	85.00~	308-04~	1~	H490 ANKX 12~	H490 ANKX 1205PNTR-RM	1~	3~	308-04~	GEMLT020010~	71E01A05B627B~	MILSQI_MFDA02~	90.0~	0~	25~	S~	FDA~	02~	FDA02G3200H$07~	1~	G~	3200~	IS$$385950305949408~	0.0~	999~	H7~	M~	5~	5~	3106260		0

Catalog No	ItemRemark	GISC	DXF	P21	STPL	P21
3106260		3	<a href="javascript:OpenDxf('3106260', 'H490 SM D080-60-5-32-12' , 'IscarDxf' , '3106260 - H490 SM D080-60-5-32-12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106260&itemDesc=H490 SM D080-60-5-32-12"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3106260&itemDesc=H490 SM D080-60-5-32-12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1
ae(max)=0.25xD for regular inserts, ae(max)=0.35xD for -CS (chip splitting) inserts.

3D Representation

Light

Detailed

Spare Parts
	7000216	SR 14-544	Torx screw	Details
Recommended tightening torque:4.8 Nm (42.5lbfin)
	7002095	BLD T15/M7	Torx blade
For limiting torque, use optional BLD 4 T15-4.8NM blade & HSD 4-4.8NM handle.
	7002097	SW6-T	T-handle
