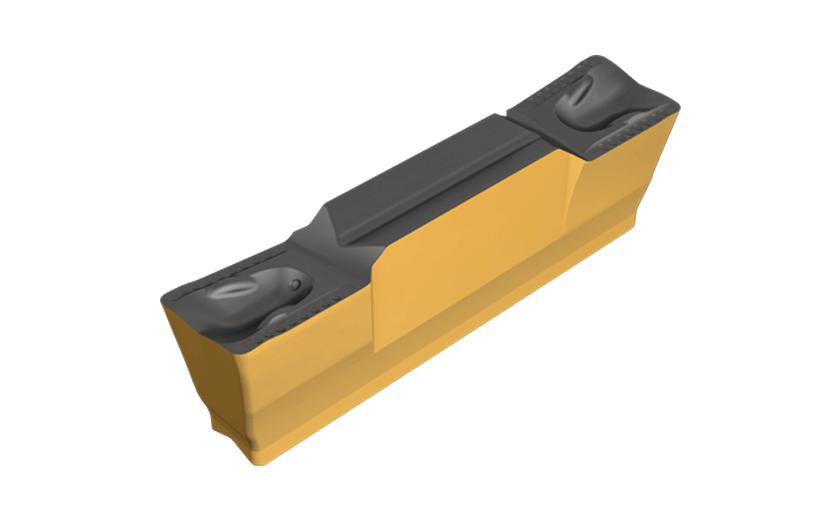

 GRIP :  Double-ended inserts, for turning & grooving in external, internal and face applications.
 No depth penetration limit.

Ext. Grooving   Int. Grooving   Face Grooving   Int. Groov & Turn   Int. Face Grooving   Face Grving Along Shaft   Ext. Grooving & Turning   Face Grooving & Turning
  Designation
W±0.05
R
R±toler
l
M
ap(min)
ap(max)
ft(min)
ft(max)
fg(min)
fg(max)
ffg(min)
ffg(max)
fft(min)
fft(max)
  Grade
  GRIP 3002Y  3.00  0.20  0.050  16.00  2.3  0.25  1.80  0.14  0.18  0.07  0.11  0.08  0.20  0.10  0.20 IC830 IC354 IC9025 IC808 IC908
  GRIP 3003Y  3.00  0.30  0.050  16.00  2.3  0.40  1.80  0.15  0.19  0.07  0.11  0.08  0.20  0.10  0.20 IC354 IC8250 IC9025 IC418 IC808 IC5010
  GRIP 318-040Y  3.18  0.40  0.050  16.00  2.3  0.50  1.90  0.17  0.22  0.07  0.12  0.08  0.20  0.10  0.20 IC354 IC9025 IC418 IC808 IC908
  GRIP 4002Y  4.00  0.20  0.050  19.00  2.8  0.25  2.40  0.16  0.21  0.09  0.14  0.10  0.24  0.15  0.30 IC830 IC354 IC8250 IC9025 IC808 IC908
  GRIP 4004Y  4.00  0.40  0.050  19.00  2.8  0.50  2.40  0.18  0.24  0.09  0.15  0.10  0.24  0.15  0.30 IC354 IC8250 IC9025 IC418 IC808 IC908 IC5010
  GRIP 476-080Y  4.76  0.80  0.050  19.00  3.1  1.00  2.80  0.21  0.33  0.10  0.20  0.10  0.24  0.15  0.30 IC354 IC9025 IC418 IC808 IC908
  GRIP 5005Y  5.00  0.50  0.050  19.00  3.3  0.60  3.00  0.20  0.30  0.11  0.20  0.12  0.24  0.15  0.35 IC354 IC8250 IC9025 IC418 IC808 IC908 IC5010
  GRIP 5008Y  5.00  0.80  0.050  19.00  3.4  1.00  3.00  0.23  0.35  0.11  0.21  0.12  0.24  0.15  0.35 IC354 IC8250 IC9025 IC418 IC808 IC908 IC5010
  GRIP 6005Y  6.00  0.50  0.050  19.00  4.2  0.60  3.60  0.22  0.36  0.13  0.23  0.12  0.28  0.15  0.40 IC354 IC8250 IC9025 IC418 IC808 IC908
  GRIP 6008Y  6.00  0.80  0.050  19.00  4.2  1.00  3.60  0.24  0.42  0.13  0.25  0.12  0.28  0.15  0.40 IC354 IC8250 IC9025 IC418 IC808 IC908
  GRIP 635-080Y  6.35  0.80  0.050  19.00  4.2  1.00  3.80  0.25  0.44  0.14  0.27  0.12  0.28  0.15  0.40 IC354 IC9025 IC418 IC808 IC908
