Family Designation: FF VNMT 0706

Tangentially clamped inserts with 4 cutting edges for fast feed milling.

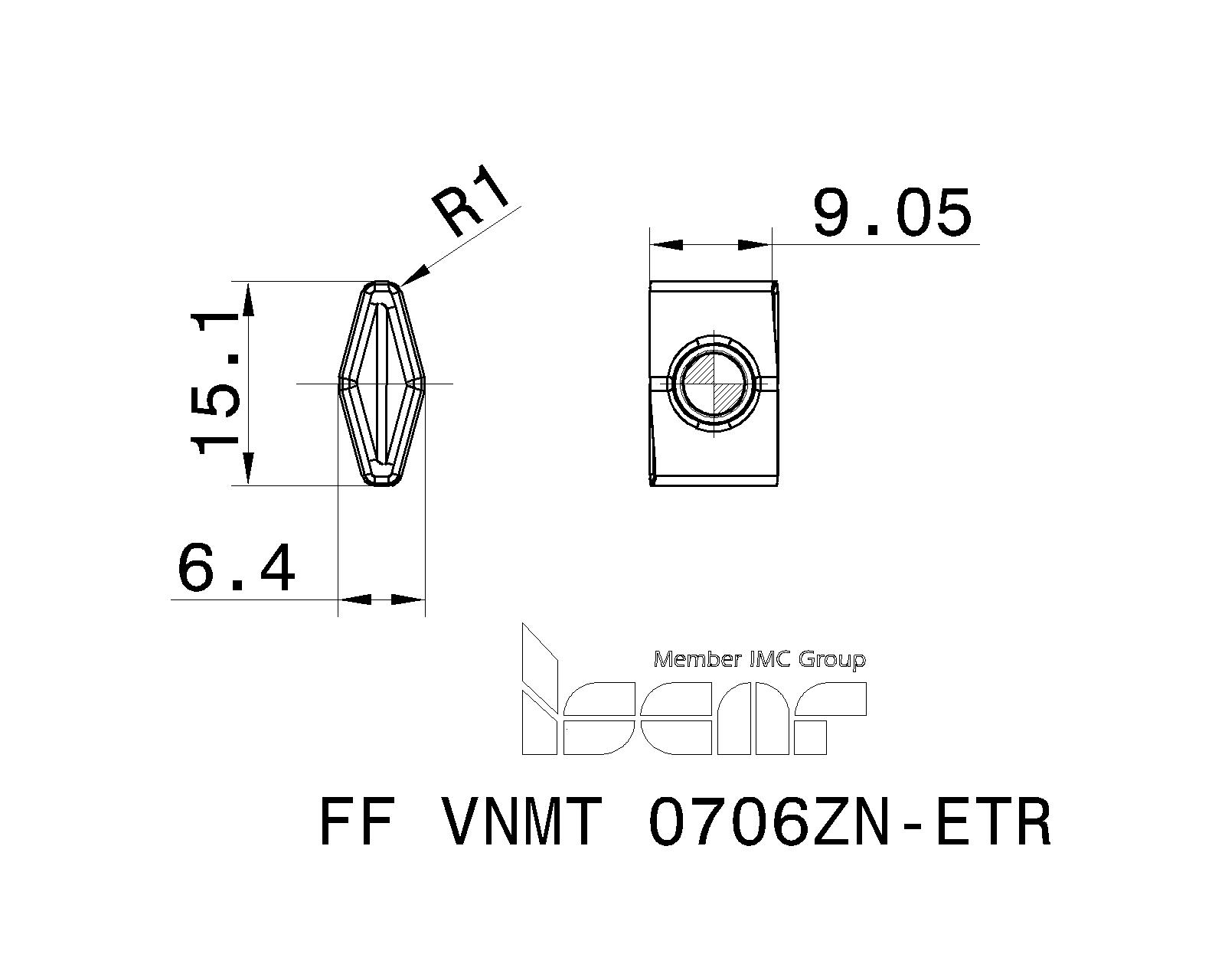

Item Designation: FF VNMT 0706ZN-ETR

W1	INSL	RE	S	ap (min)	ap (max)	fz (min)	fz (max)	CEDC	HAND	SC	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
6.40	15.00	1.00	9.05	0.50	1.50	0.40	1.80	4~	N~	~	IC5500~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiCrN+TiN ~	5667954	Reinforced cutting edges for interrupted cut and unfavorable conditions	4

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GTC	STP	P21
3342807	IC808	Alternative	1	1600	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3342807&cat=3342807&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3342807&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3342807&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Reinforced cutting edges for interrupted cut and unfavorable conditions
3342808	IC810		8	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3342808&cat=3342808&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3342808&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3342808&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Reinforced cutting edges for interrupted cut and unfavorable conditions
3342810	IC5500		1	160	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3342810&cat=3342810&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3342810&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3342810&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Reinforced cutting edges for interrupted cut and unfavorable conditions
5667954	IC830		1	2864	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5667954&cat=5667954&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5667954&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5667954&itemDesc=FF VNMT 0706ZN-ETR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Reinforced cutting edges for interrupted cut and unfavorable conditions

Items Per Package : 10
For side plunging, the initial cutting feed is 0.1 mm/t

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
