Family Designation: IR/L-ABUT
Internal American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, used for high force transmission in one direction.

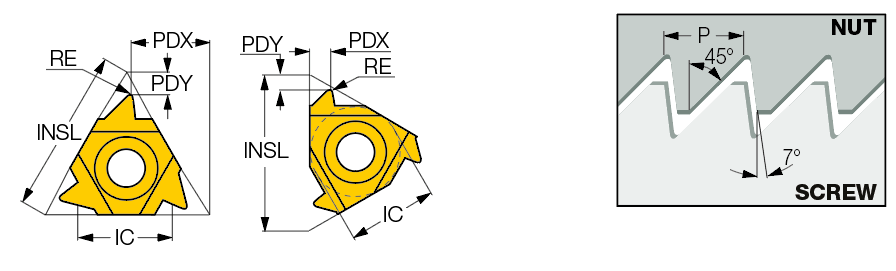

IR/L-ABUT
Right-hand shown
IR/L-ABUT
Internal left-hand shown
Item Designation: 16IR 10 ABUT IC908
Properites
IC
 9.52
TPI
Threads per inch 		10.0
INSL
 16.49
RE
 0.15
PDX
 2.40
PDY
 1.50
Catalog No
5993819 5993819
Items Per Package: 5
Weight: 6.60 g
Net Weight: 2.25g
Production Order Number: 6410389
Stock Availability: USA    Europe    Far East
