EC-D6 : 6 flute, 50° helix medium length solid carbide endmills. Used for finishing on hard materials up to 65 HRC.(-)6 Flute, 50° Helix Medium Length Solid Carbide Endmills for Finishing of Hard Materials up to 65 HRC(+)

Representative Image

Hard Materials

Representative Image

Hard Materials

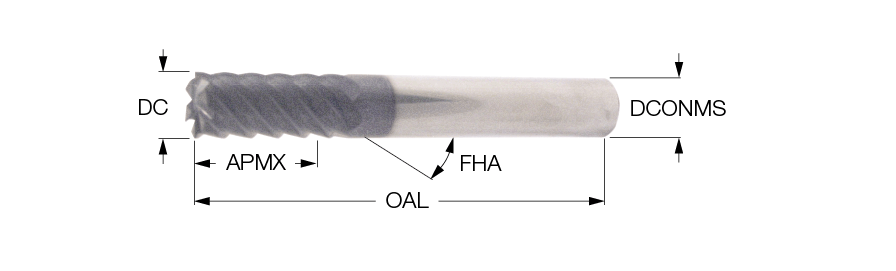

Designation	GIFUT5	DC	DCONMS	APMX	OAL	NOF	FHA	Shank	RMPX°	fz (min)	fz (max)	MINI	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
EC-D6 06-13C06H57	1	6.00	6.00	13.00	57.00	6	50.0	C	5.0	0.03	0.07	All~	6.00~	ZYL01F6000h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621838	1	IC903
EC-D6 08-20C08H63	1	8.00	8.00	20.00	63.00	6	50.0	C	5.0	0.03	0.09	All~	8.00~	ZYL01F8000h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621839	1	IC903
EC-D6 10-22C10H72	1	10.00	10.00	22.00	72.00	6	50.0	C	5.0	0.03	0.10	All~	10.00~	ZYL01G1000h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621983	1	IC903
EC-D6 12-25C12H83	1	12.00	12.00	25.00	83.00	6	50.0	C	5.0	0.04	0.11	All~	12.00~	ZYL01G1200h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621841	1	IC903
EC-D6 12-25W12H83	1	12.00	12.00	25.00	83.00	6	50.0	W	5.0	0.04	0.11	All~	12.00~	ZYL10G1200h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621848	1	IC903
EC-D6 14-30C14H83	0	14.00	14.00	30.00	83.00	6	50.0	C	5.0	0.04	0.12	-~	14.00~	ZYL01G1400h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621842	1	IC903
EC-D6 16-32C16H92	1	16.00	16.00	32.00	92.00	6	50.0	C	5.0	0.05	0.13	-~	16.00~	ZYL01G1600h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621843	1	IC903
EC-D6 20-38C20H104	1	20.00	20.00	38.00	104.00	6	50.0	C	5.0	0.05	0.13	-~	20.00~	ZYL01G2000h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	6~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5621844	1	IC903
