PS BT-JIS (Pull Stud) : BT pull stud with JIS 6339 retention knob.(-)BT Pull Stud with JIS 6339 Retention Knob(+)

Related Accessories for : BT40 FC SRKIN 8X90

Designation	SS	CRKS	BD_3	BD_2	BD	CND	LB	OAL	LB_2	BHTA	Fig.	CSP	GICAT	GIREM
PS BT40 15 M16 JIS 4OB	40	M16	19.00	14.00	17.00	4.0	23.00	54.0	29.00	75.0	2.	1	4517171	4 mm through hole for OKUMA machines
PS BT40 15 M16 JISB	40	M16	19.00	14.00	17.00	5.5	23.00	54.0	29.00	75.0	1.	1	4517016
PS BT40 15 M16 JISOB	40	M16	19.00	14.00	17.00	5.5	23.00	54.0	29.00	75.0	2.	1	4517121
PS BT40 15 M16 JISOBO	40	M16	19.00	14.00	17.00	6.0	23.00	54.0	29.00	75.0	3.	1	4505242	For DMG MORI machines

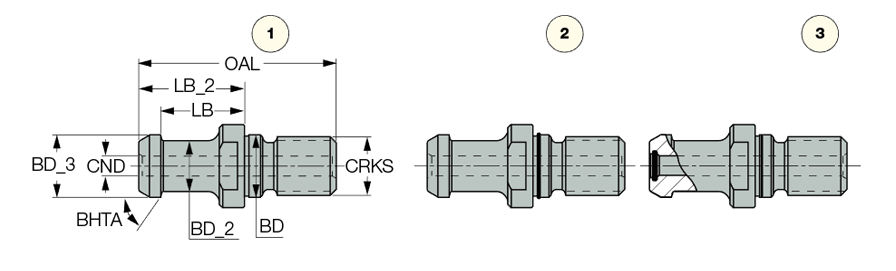

Fig 1: With coolant holes only
Fig 2: With coolant holes and external O-ring
Fig 3: With coolant holes, external and internal O-rings
