BTB-MB : MB modular connection system with BT MAS-403 type B taper shanks.(-)MB Modular Connection System with BT MAS-403 Type B Taper Shanks(+)

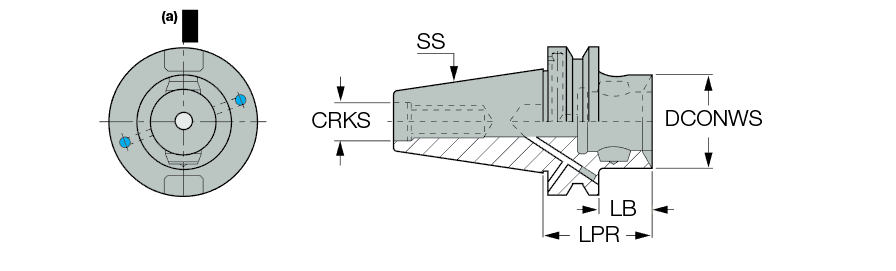

(a)Cutting edge position

Designation	SS	DCONWS	LB	LPR	CRKS	OAL		CSP	CCMS	DCONMS	GICAT
BTB40 MB50	40	50.00	21.0	48.00	M16	~	0.96	~	SKG56C0400~	~	4550010
BTB40 MB63	40	63.00	-	66.00	M16	~	1.34	~	SKG56C0400~	~	4550011
BTB50 MB50X66	50	50.00	28.0	66.00	M24	~	3.89	~	SKG56C0500~	~	4550012
BTB50 MB63X75	50	63.00	37.0	75.00	M24	~	4.00	~	SKG56C0500~	~	4550013
BTB50 MB80	50	80.00	37.0	75.00	M24	~	4.30	~	SKG56C0500~	~	4550110

Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.

Boring
Main Application
