Boring
Main Application
Customized Items ×
Choose an item to customize and generate a quotation

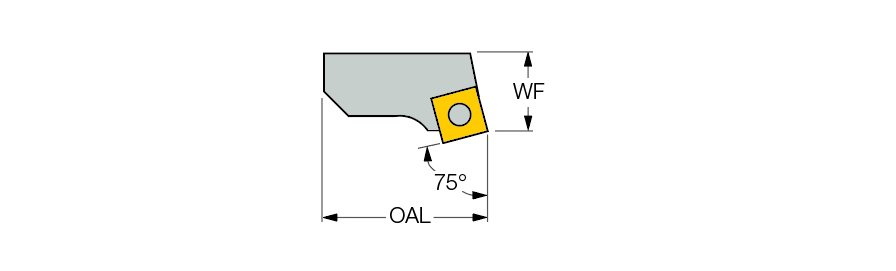

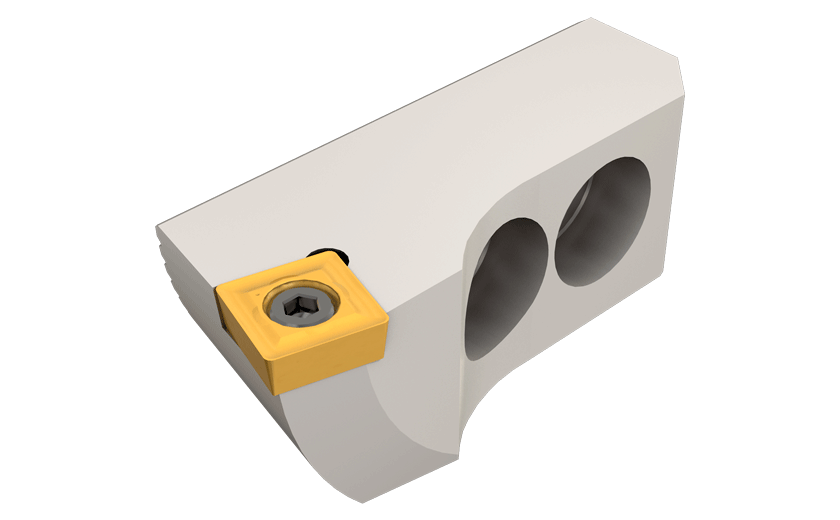

IHPR : 75° rough boring toolholders used on the MB modular boring system.(-)75° Rough Boring Toolholders(+)


  Designation  GIFUT5DCN  DCX  WF OAL Insert IC D1 GICATGIREMgiic
  IHPR 36-50    035.550.015.0032.00SCMT 09T3...9.52~4.40~4550323 0
  IHPR 50-68    050.068.019.0040.00SCMT 09T3...9.52~4.40~4550324 0
  IHPR 68-90    068.090.022.0053.90SCMT 1204...12.70~5.50~4550325 0
  IHPR 90-120    090.0120.027.0070.50SCMT 1204...12.70~5.50~4550326 0
  IHPR 120-160    0120.0160.032.0094.50SCMT 1204...12.70~5.50~4550327 0
  IHPR 160-800    0160.0800.032.00130.00SCMT 1204...12.70~5.50~4550328 0
  IHPR 160-800-19    0160.0800.040.00129.00SNMG 1906...19.05~7.94~4560074 0
