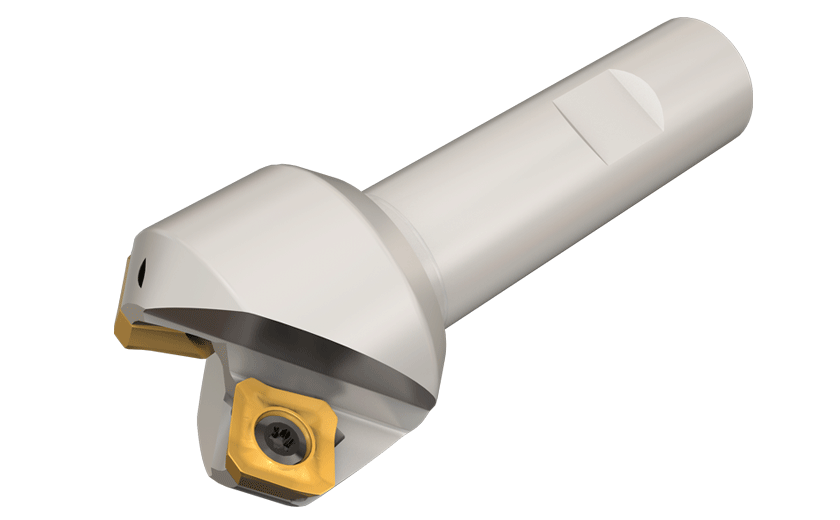

F45ST (endmill) : 45° screw clamped endmills with SEK/MT 12... inserts.(-)45° Screw Clamped Endmills with SEK/MT 12... Inserts(+)

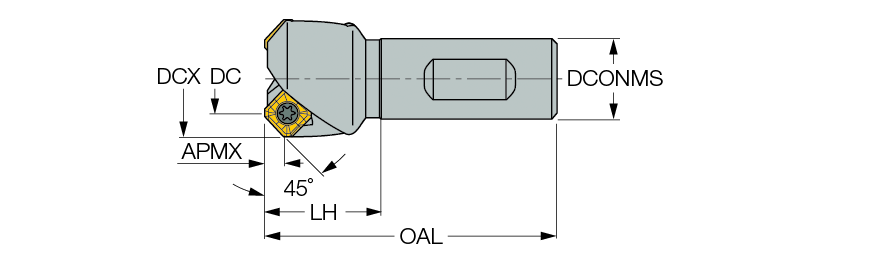

  Designation  GIFUT5DC DCX  APMX CICT  LH OAL DCONMS Shank  L RMPX°  KAPR  HAND CCMS NOF  ZEFF CSP  DMIN LU GICATGIREMgiic
  F45ST D025-W20    025.0037.006.50228.092.0020.00W0.266.50~24.0~45.0~R~ZYL10G2000h$06~2~2~0~-~-~3181045 0
  F45ST D032-W25    032.0044.706.50332.0100.0025.00W0.446.50~17.0~45.0~R~ZYL10G2500h$06~3~3~0~-~-~3181063 0
SE..1204 inserts are directly mounted on the cutter.
SE..12T3 optional thinner inserts are mounted on a seat - TSE 12T3-N.
For adaptation click on "More Info".
