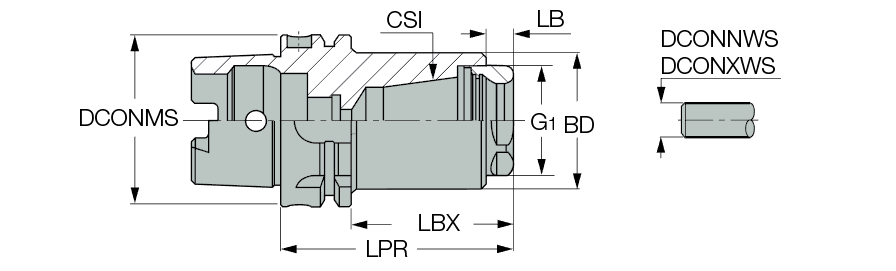

HSK A-ER-SHORT : Short DIN6499 ER collet chucks with HSK DIN69893 form A balanceable tapered shanks.(-)Short DIN6499 ER Collet Chucks with HSK DIN69893 Form A Tapered Shanks(+)

Designation	DCONMS	CSI	DCONNWS	DCONXWS	BD	LPR	LBX	LB	G1	OAL	CDI		CSP	CCMS	GICAT
HSK A63 ER32 SHORT	63.00	ER32	2.0	20.0	50.00	81.00	55.0	9.50	M40X1.5	113.00~	1	1.13	1~	HSK01C0630$$$$~	4509171
HSK A100 ER32 SHORT	100.00	ER32	2.0	20.0	50.00	89.50	60.5	9.50	M40X1.5	139.50~	1	2.54	1~	HSK01C1000$$$$~	4509172
HSK A100 ER40 SHORT	100.00	ER40	3.0	26.0	70.00	104.50	75.5	9.50	M50X1.5	154.50~	1	3.51	1~	HSK01C1000$$$$~	4502172

A cooling tube must be used with all coolant through HSK spindles (to be ordered separately).
For shank dimensions, Click on "More Info"
