DIN2079-MB : Connecting plates enable the use of ITSBORE components with "MB" connection by using any standard adapter with four screws. It is affixed directly on any machine spindle with a DIN 2079 interface.(-)MB Modular Connection System with DIN 2079 Spindle Connecting Interface(+)

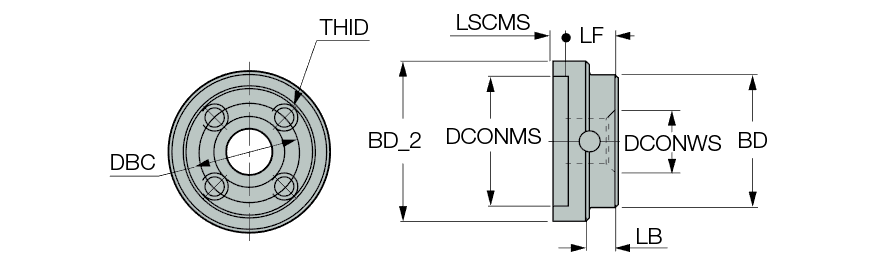

  Designation  GIFUT5LF DCONWS LSCMS LB BD BD_2 DCONMS DBC THID GICATGIREMgiic
  DIN2079 MB50 40    035.0050.0010.0021.090.00110.0088.8966.70M121.964550697 0
  DIN2079 MB63 40    047.0063.0010.0031.090.00110.0088.8966.70M122.064550698 0
  DIN2079 MB63 50    045.0063.0012.0031.0135.00150.00128.57101.60M164.604550699 0
  DIN2079 MB80 50    050.0080.0012.0036.0135.00150.00128.57101.60M165.004550700 0
Standard connection plate that can be assembled easily on most CNC spindle machines with a DIN2079 interface. This connection plate enables the use of ITS BORE components with the MB connection by using any standard adapter with four screws. It is affixed to the machine spindle.
