DGTR/L-B-T-SH : Integral shank, reinforced parting and grooving short head tools carrying DGN double-ended inserts.(-)Reinforced Parting and Grooving Short Head Tools Carrying DGN Double-Ended Inserts(+)

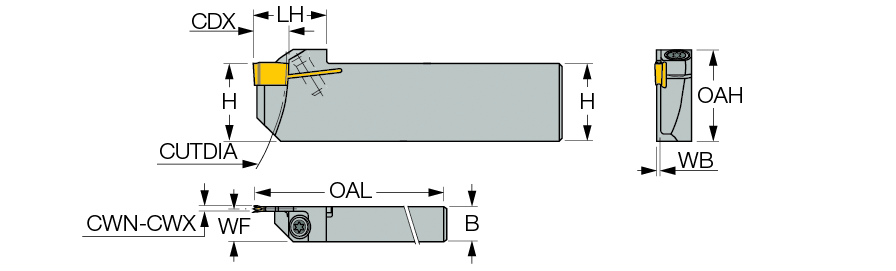

Left-hand shown

Left-hand shown

  Designation  GIFUT5CWN  CWX  H B WB WF OAL LH CUTDIA CDX  OAH HAND APMX CCMS CSP  CW KAPR  GICATGIREMgiic
  DGTL 2009B-1.5T9SH    01.001.5020.09.01.208.40100.0019.095.09.0023.7L1.50~VKT01A2009~~~~2301573 0
  DGTR 2009B-1.5T9SH    01.001.5020.09.01.208.40100.0019.095.09.0023.7R1.50~VKT01A2009~~~~2301572 0
Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width.
