GTIN ER-DIN (tapping) : ER collet tapping attachments, tension and compression DIN type used for CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism.(-)ER Collet Tapping Attachments, Tension and Compression DIN Type for CNC Milling and Turret Lathe Machines(+)


 HARDNESS 58-60  SURFACE FINISH N5

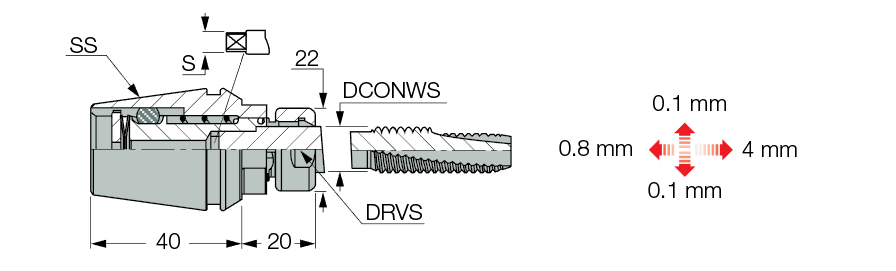

  Designation  GIFUT5SS DCONWS DCONMS S Tap min Tap max DRVS  OAL CDI  GICATGIREMgiic
  GTIN ER32 DIN 2.50X2.10    0ER322.500.00~2.10M1M1.820.060.00~00.204548059 0
  GTIN ER32 DIN 2.80X2.10    0ER322.800.00~2.10M2M420.060.00~00.224548060 0
  GTIN ER32 DIN 3.50X2.70    0ER323.500.00~2.70M3M520.060.00~00.224548061 0
  GTIN ER32 DIN 4.00X3.00    0ER324.000.00~3.00M3.5M3.520.060.00~00.214548062 0
  GTIN ER32 DIN 4.50X3.40    0ER324.500.00~3.40M4M620.060.00~00.204548063 0
  GTIN ER32 DIN 6.00X4.90    0ER326.000.00~4.90M5M820.060.00~00.204548064 0
  GTIN ER32 DIN 7.00X5.50    0ER327.000.00~5.50M7M1020.060.00~00.204548065 0
  GTIN ER32 DIN 8.00X6.20    0ER328.000.00~6.20M8M820.060.00~00.204548066 0
  GTIN ER32 DIN 9.00X7.00    0ER329.000.00~7.00M12M1220.060.00~00.224548067 0
  GTIN ER32 DIN 10.00X8.00    0ER3210.000.00~8.00M10M1020.060.00~00.224548068 0
  GTIN ER32 DIN 11.00X9.00    0ER3211.000.00~9.00M14M1420.060.00~00.214548069 0
  GTIN ER32 DIN 12.00X9.00    0ER3212.000.00~9.00M16M1620.060.00~00.204548070 0
No coolant should be induced through the tapping collet as it will cause malfunction of the mechanism
Compensates for machine feed and tap pitch variance
Floating mechanism compensates for misalignment between tap and workpiece
Hard start for rigid tapping
When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32
