DCM-3.5D (7.5-20.9 mm) : UNICHAMDRILL exchangeable head drills without flange and with flat shank, drilling depth 3.5xD, suitable for chamfering holder(-)Drill Body with Exchangeable Heads, Internal Coolant, Flat Shank, No Flange, Drilling Depth 3.5xD, for Chamfering Holder(+)

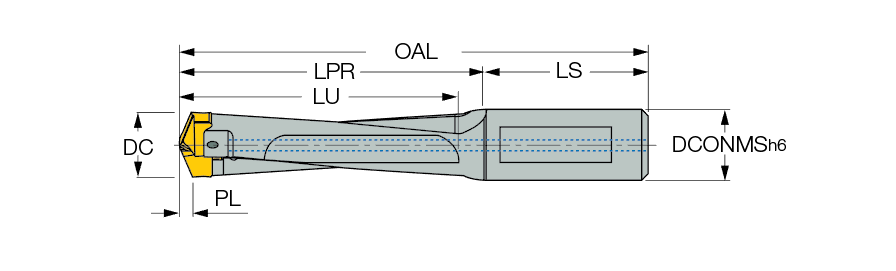

Designation	DCN	DCX	DCONMS	LU	LPR	PL	LS	OAL	SSC	ZEFF	CCMS	CSP	HAND	IFS	MIID	NOF	GICAT
DCM 075-026-8B-3.5D	7.50	7.90	8.00	26.0	33.7	1.360	43.0	76.70	8.0	2~	ZYL11F8000h$06~	1~	R~	0~	IDI 075	0~	3200968
DCM 080-028-8B-3.5D	8.00	8.40	8.00	28.0	35.9	1.460	43.0	78.90	8.0	2~	ZYL11F8000h$06~	1~	R~	0~	IDI 080	0~	3200969
DCM 085-029-9B-3.5D	8.50	8.90	9.00	29.0	36.8	1.549	43.0	79.90	8.0	2~	ZYL11F9000h$06~	1~	R~	0~	IDI 085	0~	3200970
DCM 090-031-9B-3.5D	9.00	9.40	9.00	31.0	39.1	1.640	43.0	82.10	9.0	2~	ZYL11F9000h$06~	1~	R~	0~	IDI 090	0~	3200971
DCM 095-033-10B-3.5D	9.50	9.90	10.00	33.0	40.3	1.730	43.0	83.30	9.0	2~	ZYL11G1000h$06~	1~	R~	0~	IDI 095	0~	3200972
DCM 100-033-10B-3.5D	10.00	10.40	10.00	33.0	42.9	1.829	43.0	86.00	10.0	2~	ZYL11G1000h$06~	1~	R~	0~	IDI 100	0~	3200973
DCM 105-034-11B-3.5D	10.50	10.90	11.00	34.0	44.8	1.910	43.0	87.80	10.0	2~	ZYL11G1100h$06~	1~	R~	0~	IDI 105	0~	3200974
DCM 110-036-11B-3.5D	11.00	11.40	11.00	36.0	46.9	2.000	43.0	89.90	11.0	2~	ZYL11G1100h$06~	1~	R~	0~	IDI 110	0~	3200975
DCM 115-038-12B-3.5D	11.50	11.90	12.00	38.0	48.6	2.090	43.0	91.60	11.0	2~	ZYL11G1200h$06~	1~	R~	0~	IDI 115	0~	3200976
DCM 120-042-12B-3.5D	12.00	12.40	12.00	42.0	50.8	2.184	43.0	93.80	12.0	2~	ZYL11G1200h$06~	1~	R~	0~	IDI 120	0~	3200977
DCM 125-042-13B-3.5D	12.50	12.90	13.00	42.0	52.6	2.270	43.0	95.60	12.0	2~	ZYL11G1300h$06~	1~	R~	0~	IDI 125	0~	3200978
DCM 130-042-13B-3.5D	13.00	13.40	13.00	42.0	54.6	2.362	45.0	99.50	13.0	2~	ZYL11G1300h$06~	1~	R~	0~	IDI 130	0~	3200979
DCM 135-044-14B-3.5D	13.50	13.90	14.00	44.0	56.1	2.464	45.0	101.20	13.0	2~	ZYL11G1400h$06~	1~	R~	0~	IDI 135	2~	3200980
DCM 140-048-14B-3.5D	14.00	14.40	14.00	48.0	59.2	2.540	45.0	104.20	14.0	2~	ZYL11G1400h$06~	1~	R~	0~	IDI 140	2~	3200981
DCM 145-050-15B-3.5D	14.50	14.90	15.00	50.0	60.9	2.640	45.0	105.90	14.0	2~	ZYL11G1500h$06~	1~	R~	0~	IDI 145	2~	3200982
DCM 150-052-15B-3.5D	15.00	15.90	15.00	52.0	63.0	2.718	45.0	108.10	15.0	2~	ZYL11G1500h$06~	1~	R~	0~	IDI 150	2~	3200983
DCM 160-052-16B-3.5D	16.00	16.90	16.00	52.0	67.1	2.921	48.0	115.00	16.0	2~	ZYL11G1600h$06~	1~	R~	0~	IDI 160	2~	3200984
DCM 170-055-17B-3.5D	17.00	17.90	17.00	55.0	73.6	3.090	48.0	121.60	17.0	2~	ZYL11G1700h$06~	1~	R~	0~	IDI 170	2~	3200985
DCM 180-060-18B-3.5D	18.00	18.90	18.00	60.0	78.2	3.277	48.0	126.30	18.0	2~	ZYL11G1800h$06~	1~	R~	0~	IDI 180	2~	3200986
DCM 190-062-19B-3.5D	19.00	19.90	19.00	62.5	81.8	3.460	54.0	135.80	19.0	2~	ZYL11G1900h$06~	1~	R~	0~	IDI 190	2~	3200987
DCM 200-066-20B-3.5D	20.00	20.90	20.00	66.0	84.6	3.632	54.0	138.60	20.0	2~	ZYL11G2000h$06~	1~	R~	0~	IDI 200	2~	3200988

Do not mount smaller drilling heads other than the specified range of the drill body
Drill tolerance: k7
