MAHR/L : MODULAR-GRIP holder for adapters of all GRIP systems.(-)Adapter Holders for all GRIP Systems(+)

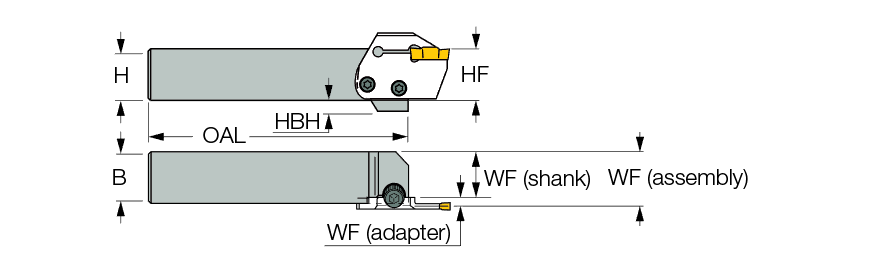

Left-hand shown
WF(assembly)=WF(shank)+WF(adapter)

Right-hand shown
Left-hand shown
WF(assembly)=WF(shank)+WF(adapter)

Right-hand shown
  Designation  GIFUT5H B HF OAL HBH WF  HAND CSP  Tool typGICATGIREMgiic
  MAHL 20    020.020.020.0130.0010.017.1L~SQUARE~2801270 0
  MAHR 20    020.020.020.0130.0010.017.1R~SQUARE~2801269 0
  MAHL 25    025.025.025.0130.005.022.1L~SQUARE~2801126 0
  MAHR 25    025.025.025.0130.005.022.1R~SQUARE~2801254 0
  MAHL 32    032.032.032.0140.00-29.1L~SQUARE~2801127 0
  MAHR 32    032.032.032.0140.00-29.1R~SQUARE~2801255 0
For CDX, refer to the adapters data
